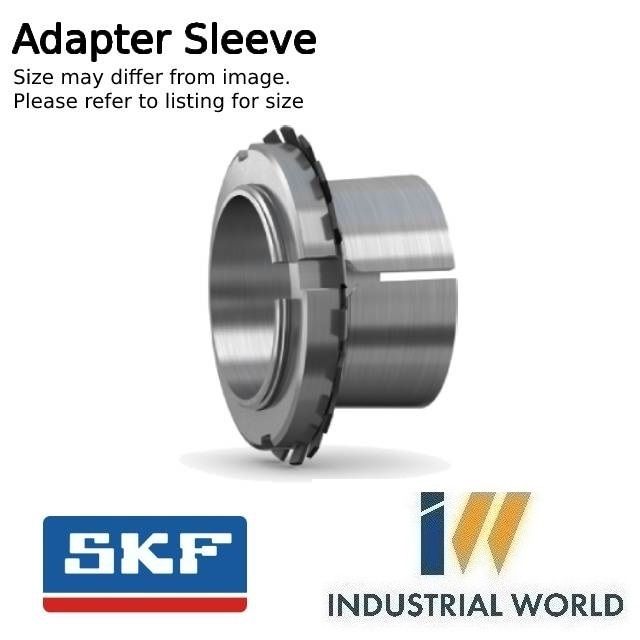

SKF - Adapter Sleeve 75 mm Bore

Nut = KM17 M85x2 Washer = MB17
Stock Code:
H2317_SKF
$101.00 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

H2317

• 75.00 mm Shaft Size
• Locknut KM17
• Lockwasher MB17
• M85X2 Thread Size

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. Ballarat Bearings stocks many brands, from economical to premium sleeves in a variety of sizes.

They are easy to install and require no additional location on the shaft. When used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially, thereby facilitating bearing mounting and dismounting.

Our standard assortment of adapter sleeves includes:

  • metric adapter sleeves
    • with a metric bore
    • with an inch bore
  • inch adapter sleeves

The sleeves are slit and are supplied complete with a lock nut and locking device:

  • Smaller sizes have a nut and a lock washer.
  • Larger sizes have a nut and a locking clip or locking plate.

For larger sizes (bore diameter, d1 ≥ 1 060 mm) and variants not listed, contact us for assistance.

SKF supplies our premium products. Find their product table below.

Dimensions

Bore diameter75 mm
Width82 mm
Thread designationM85x2

Properties

Taper1:12
Holes for oil injectionWithout

Logistics

Product net weight1.4 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for product information

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    75 mm
  • Thread Size:
    M85x2
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    H23
  • Style:
    Standard
