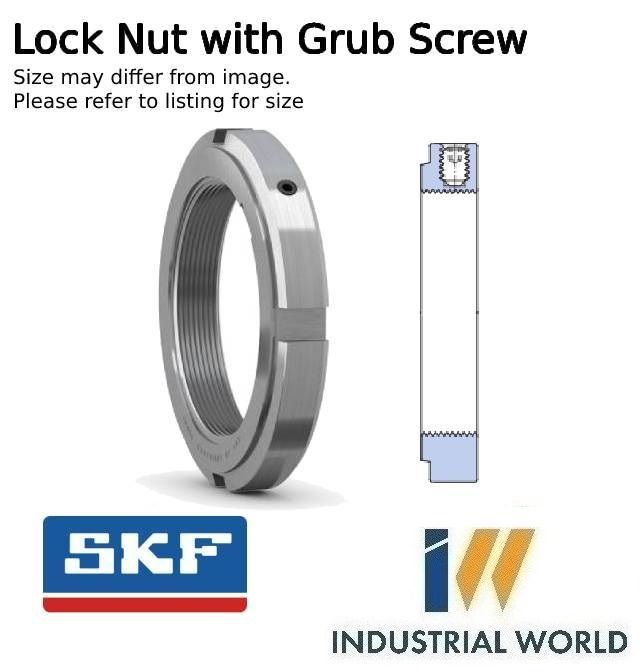

SKF - Metric Lock Nut with locking screw

( M50 X 1.5 ) Min Buy: 5
Stock Code:
KMFE10_SKF
$53.33 incl GST
Minimum Order Quantity: 5

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMFE10

Lock nuts are used to locate bearings onto a shaft. Additionally, they can be used to mount bearings with a tapered bore onto tapered shaft seats and adapter sleeves, and to dismount bearings from withdrawal sleeves. Lock nuts are also frequently used to secure gears, belt pulleys and other machine components.

Lock nuts have to be secured to prevent unintentional loosening by:

  • A locking device that engages a keyway in the shaft or key slot in the adapter sleeve,
  • Or a locking mechanism integrated in the nut.

SKF lock nuts provide a variety of ways to secure the nut onto a shaft. This lock nut uses an integrated method, requiring nothing else to function. Lock nuts with other locking methods can be supplied on request.

Lock nuts with integral locking reduce the cost of the shaft as no keyway is required. Installation is quicker and easier because no separate locking device is necessary. However, the loosening torque of these lock nuts requires more attention. For information on loosening torque, refer to the product data sections for the various lock nut series.

Dimensions

Thread designationM50x1.5
Bore diameter50 mm
Outside diameter70 mm
Width14 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolHN 10-11

Logistics

Product net weight0.16 kg
eClass code23-11-07-05
UNSPSC code31163218

Click Here for the Product Information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M50x1.5
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Grub Screw Lock
