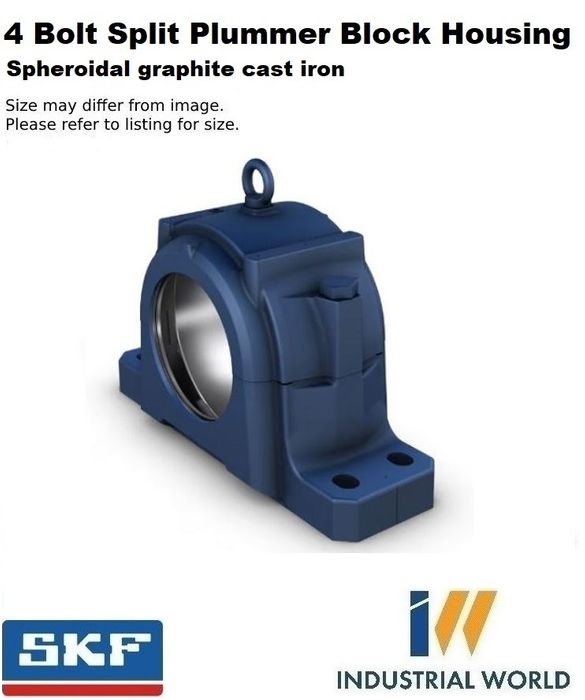

SKF - 4 Bolt Split Plummer Block Housing

Spheroidal graphite cast iron (sg)

Stock Code:

FSNLD520-617_SKF

$786.92 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

FSNLD520-617

SKF PLUMMER BLOCK HOUSING

Split plummer (pillow) block housing, SNL 2, 3, 5 and 6 series

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Dimensions

Attachment bolt diameter	16 mm
Centre distance between bolt holes	320 mm
Centre distance between bolt holes (axial direction)	60 mm
Centre height (pillow block)	112 mm
Seating diameter	180 mm
Width of bearing seat	70 mm

Properties

Bearing housing seal type	Without
Housing configuration	Two-piece
Housing lubrication feature/possibility	Grease
Housing type	Plummer/pillow block
Material, housing	Spheroidal graphite cast iron
Mounting arrangement	Through shaft/Shaft end
Number of bolt holes for fasteners	4
