SKF - V-Ring Seal (2 sides) 40 mm

qty 2 x seals Nitrile Rubber
Stock Code:
TSN509A_SKF
$23.87 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TSN509A

SKF SEAL- V RING -2 SIDES TSN509A

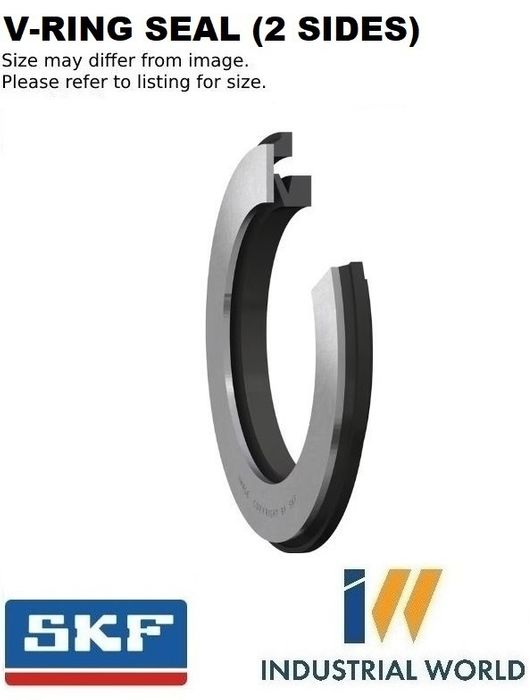

V-ring seal

V-ring seals consist of a V-ring and a sheet steel sealing washer with a vulcanized rubber lip. The rubber lip fits into the seal groove in the housing. The washer is protected against corrosion. The seals are used to protect bearings from contamination or as secondary seals to protect primary seals in highly contaminated environments. They are a cost-effective and easy to install contaminant barrier for all kind of shafts. They are available in nitrile rubber. When ordering, please note that one item (seal pack) contains two seals.

  • Easy to install
  • Many variants
  • Cost-effective

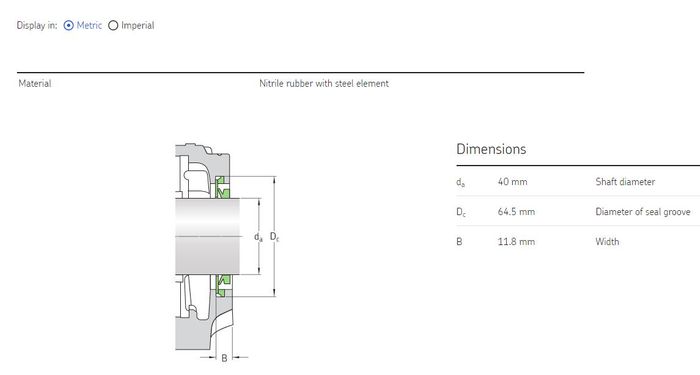

Dimensions

Housing groove diameter64.5 mm
Shaft diameter40 mm
Width11.8 mm

Properties

Accessory typeHousing seal
MaterialNitrile rubber with steel element
Sealing typeV-ring

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    NBR (Nitrile Rubber)
  • Brand:
    SKF
