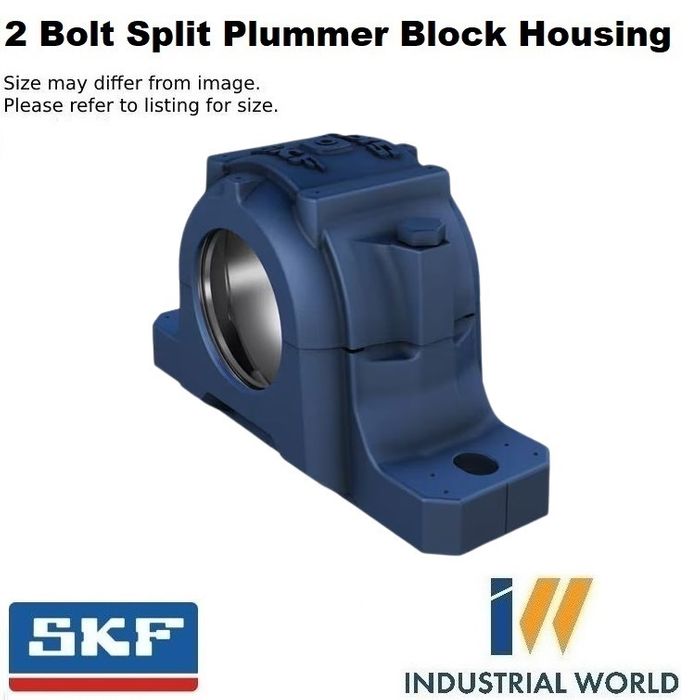

SKF - 2 Bolt Split Pummer Block Housing

Cast Iron
Stock Code:
SNL522-619_SKF
$405.00 incl GST

Stock Locations

  • Ballarat:
    8 In Stock
  • Shepparton:
    Special Order
5 On Order
Make an Enquiry
Add to Favourites

Description

SNL522-619

SKF PLUMMER BLOCK HOUSING

Split plummer (pillow) block housing, SNL 2, 3, 5 and 6 series

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage

Dimensions

Attachment bolt diameter24 mm
Centre distance between bolt holes350 mm
Centre height (pillow block)125 mm
Seating diameter200 mm
Width of bearing seat80 mm

Properties

Bearing housing seal typeWithout
Housing configurationTwo-piece
Housing lubrication feature/possibilityGrease
Housing typePlummer/pillow block
Material, housingCast iron
Mounting arrangementThrough shaft/Shaft end
Number of bolt holes for fasteners2

Click here for product information

Click here to view product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Brand:
    SKF
