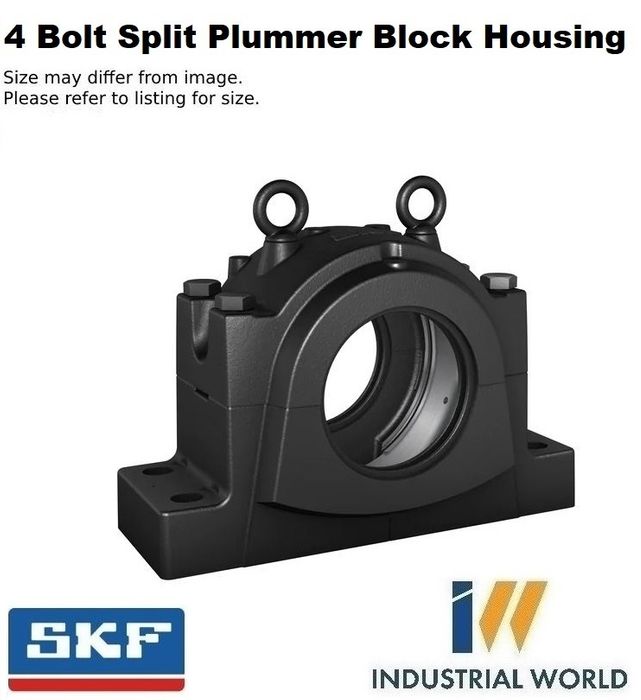

SKF - 4 Bolt Split Pummer Block Housing

Cast Iron
Stock Code:
SNL3036_SKF
$3,141.86 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SNL3036

SKF PLUMMER BLOCK HOUSING

Split plummer (pillow) block housing, SNL 30, 31 and 32 series

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage

Dimensions

Diameter of bearing seat280 mm
Width of bearing seat108 mm
Centre height (pillow block)170 mm
Centre distance between bolt holes430 mm
Centre distance between bolt holes (axial direction)100 mm
Attachment bolt diameter24 mm

Properties

Housing typePlummer/pillow block
Housing configurationTwo-piece
Mounting arrangementThrough shaft/Shaft end
Number of bolt holes for fasteners4
Material, housingCast iron
Bearing housing seal typeWithout
Housing lubrication feature/possibilityGrease

Logistics

Product net weight66 kg
eClass code23-05-17-01
UNSPSC code31171519

Click here for product information

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Brand:
    SKF
