SKF - Locating (stabilizing) Ring 3.5 x 85 mm

Steel
Stock Code:
FRB3.5/85_SKF
$4.03 incl GST

Stock Locations

  • Ballarat:
    104 In Stock
  • Shepparton:
    4 In Stock
Make an Enquiry
Add to Favourites

Description

FRB3.5/85

SKF LOCATING RING FRB3.5/85

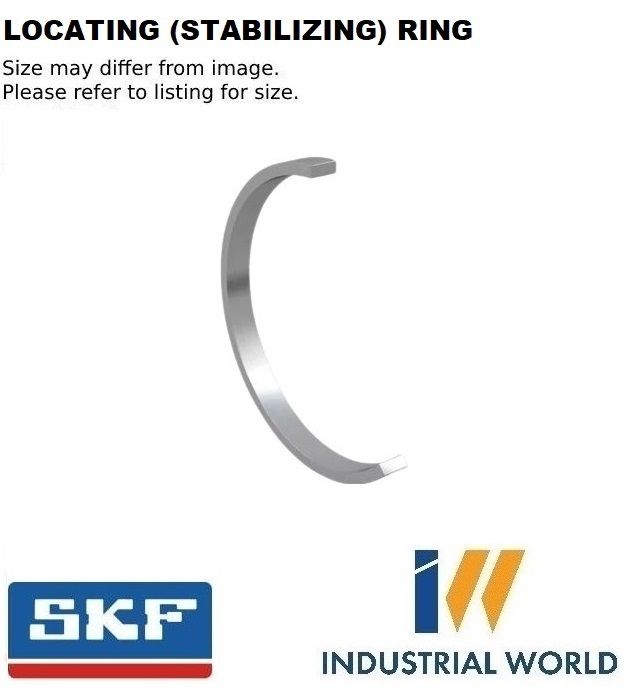

Locating (stabilizing) ring

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

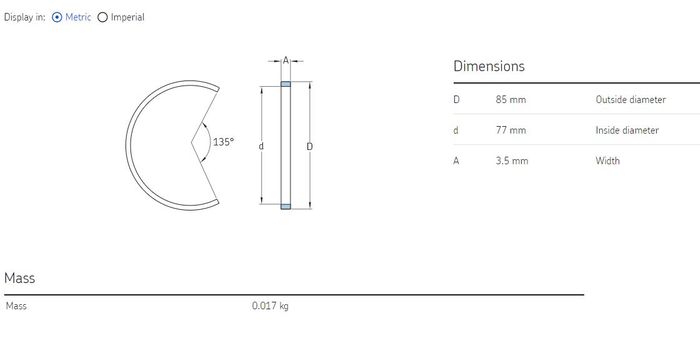

Dimensions

Inside diameter77 mm
Outside diameter85 mm
Width3.5 mm

Properties

Accessory typeLocating ring

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
