SKF - Locating (stabilizing) Ring 13.5 x 200 mm

Steel
Stock Code:
FRB13.5/200_SKF
$19.10 incl GST

Stock Locations

  • Ballarat:
    6 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FRB13.5/200

SKF LOCATING RING FRB13.5/200

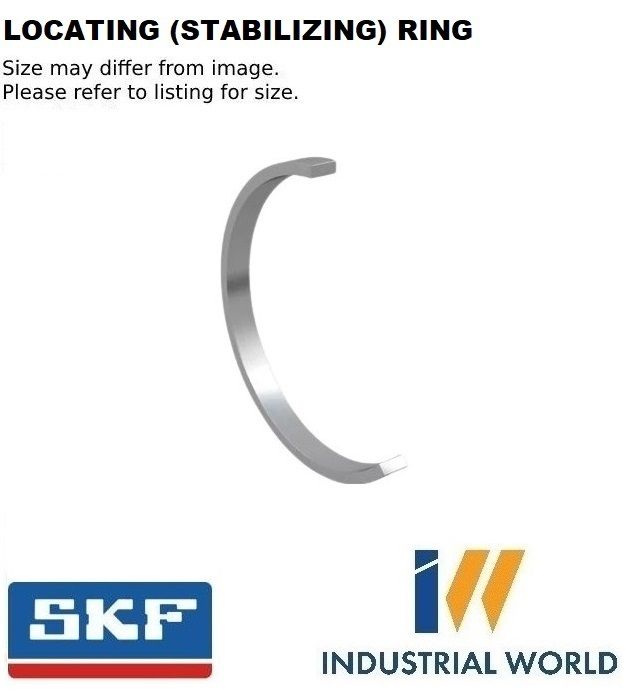

Locating (stabilizing) ring

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

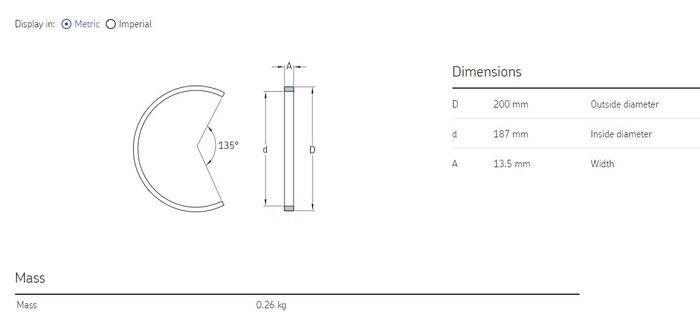

Dimensions

Inside diameter187 mm
Outside diameter200 mm
Width13.5 mm

Properties

Accessory typeLocating ring

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
