SKF - Locating (stabilizing) Ring 10 x 300 mm

Steel
Stock Code:
FRB10/300_SKF
$32.85 incl GST

Stock Locations

  • Ballarat:
    19 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FRB10/300

SKF LOCATING RING FRB10/300

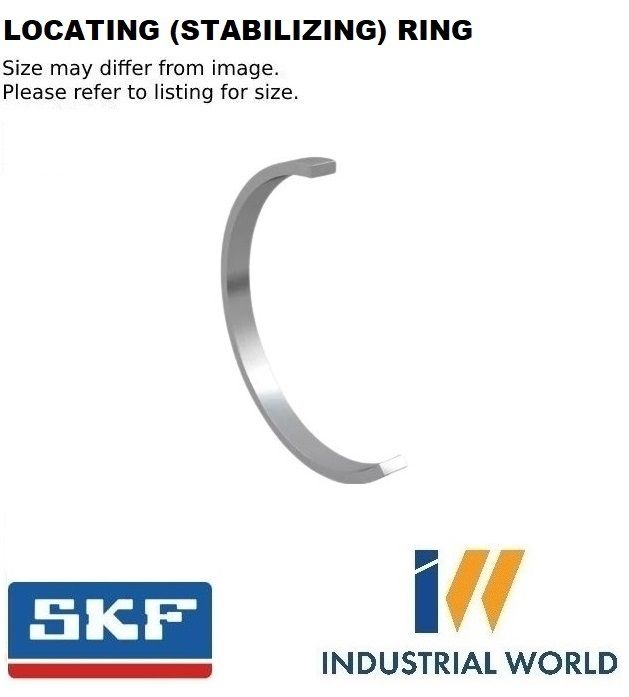

Locating (stabilizing) ring

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Dimensions

Inside diameter280 mm
Outside diameter300 mm
Width10 mm

Properties

Accessory typeLocating ring

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
