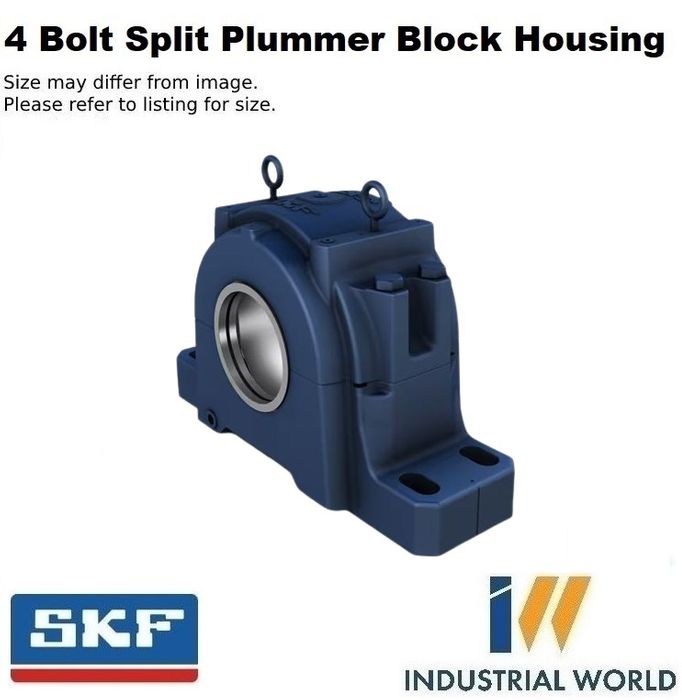

SKF - 4 Bolt Split Plummer Block Housing

cast iron - with Labyrinth seals suit 10-1/2 Shaft
Stock Code:
SAF056KAX10-1/2_SKF
$13,041.42 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SAF 056 KAX10.1/2

SKF HOUSING SUIT 23056K

Split plummer (pillow) block housing without bearing

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.

  • Robust design
  • Customizable configurations
  • Suitable for tough operating conditions
  • Cost-effective bearing solution

Dimensions

Attachment bolt diameter38.1 mm
Centre distance between bolt holes708.025 mm
Centre distance between bolt holes (axial direction)139.7 mm
Centre height (pillow block)250.825 mm
Seating diameter420 mm

Properties

Bearing housing seal typeLabyrinth seal
Housing configurationTwo-piece
Housing lubrication feature/possibilityGrease/Oil
Housing typePillow block
Material, housingCast iron
Mounting arrangementThrough shaft/Shaft end
Number of bolt holes for fasteners4

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
