SKF - Felt Seal (2 sides) 50 mm shaft

qty 2 x seals Felt
Stock Code:
TSN511C_SKF
$24.88 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TSN511C

SKF SEAL - FELT -2 SIDES TSN511C

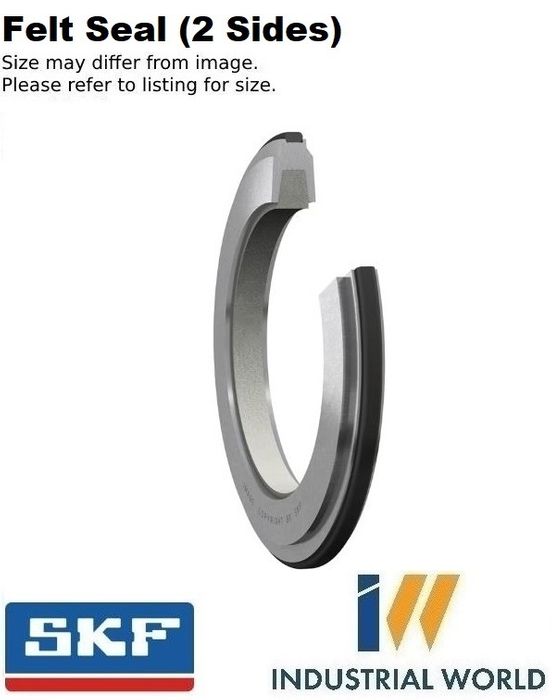

Felt seal

Felt seals provide a simple and effective sealing solution. They accommodate relatively high shaft speeds, because a small gap forms between the felt and shaft, transforming the seal into a non-contact, gap-type seal. Felt seals do not limit axial movements of the shaft. When ordering, please note that one item (seal pack) contains two seals (four halves).

  • Easy to install
  • Cost-effective
  • Suitable for relatively high shaft speeds

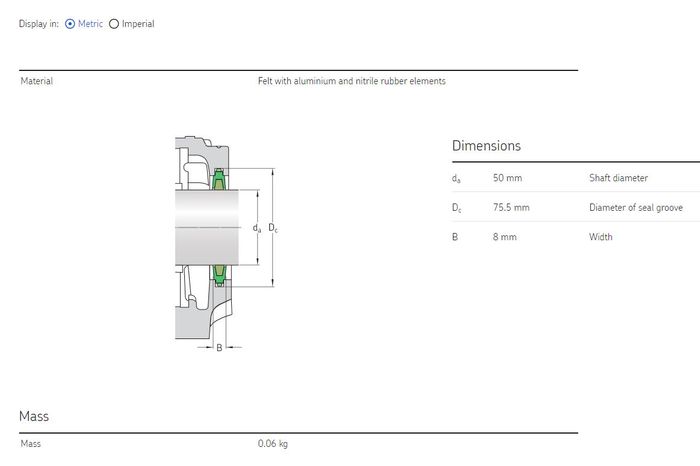

Dimensions

Housing groove diameter75.5 mm
Outside diameter73 mm
Shaft diameter50 mm
Width8 mm

Properties

Accessory typeHousing seal
MaterialFelt with aluminium and nitrile rubber elements
Sealing typeFelt

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Felt
  • Brand:
    SKF
