SKF - Labyrinth Seal 65 mm shaft

steel with Silicone o-ring (one side)
Stock Code:
TSN515S_SKF
$139.13 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    Special Order
3 On Order
Make an Enquiry
Add to Favourites

Description

TSN515S

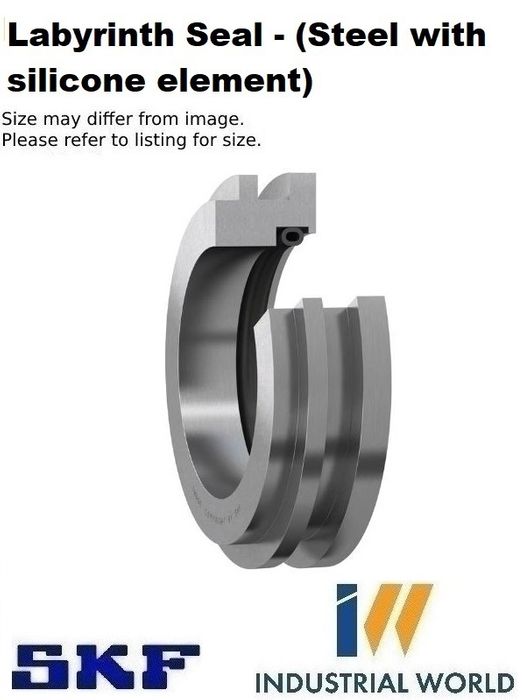

SKF LABRYNTH SEAL- 1 SIDE TSN515S

Labyrinth seal

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective

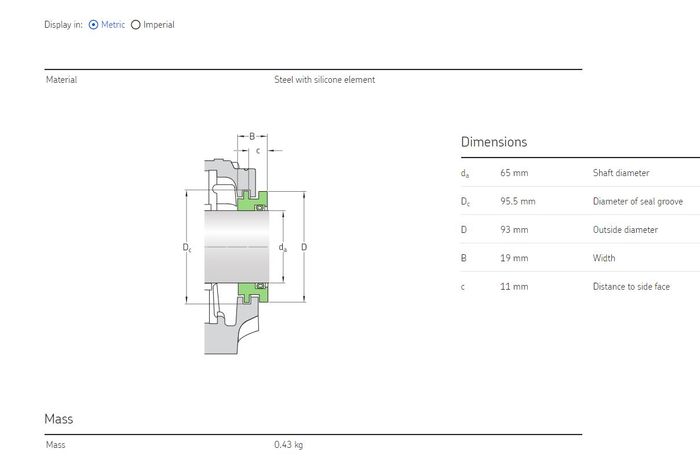

Dimensions

Housing groove diameter95.5 mm
Outside diameter93 mm
Shaft diameter65 mm
Width19 mm

Properties

Accessory typeHousing seal
MaterialSteel with silicone element
Sealing typeLabyrinth

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel with silicone o-ring
  • Brand:
    SKF
