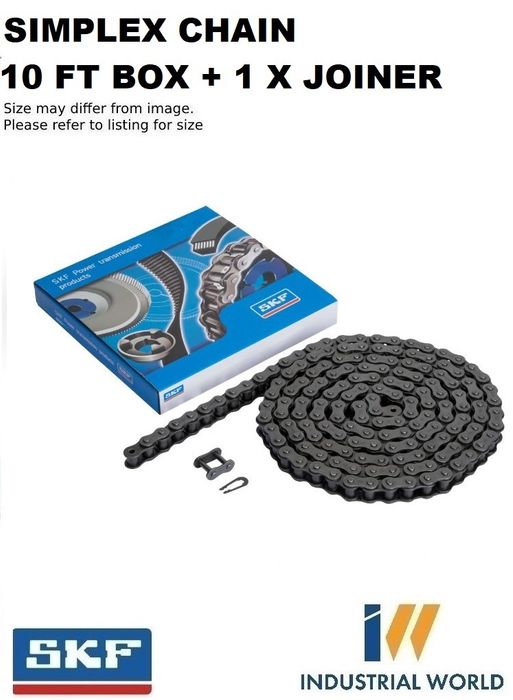

SKF ROLLER CHAIN 1-1/4- 100 -1 ROW -10FT BOX

ASA (1-1/4 INCH) PITCH - SINGLE ROW
Stock Code:
PHC100-1-BOX
$312.92 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
29 On Order
Make an Enquiry
Add to Favourites

Description

PHC 100-1X10FT

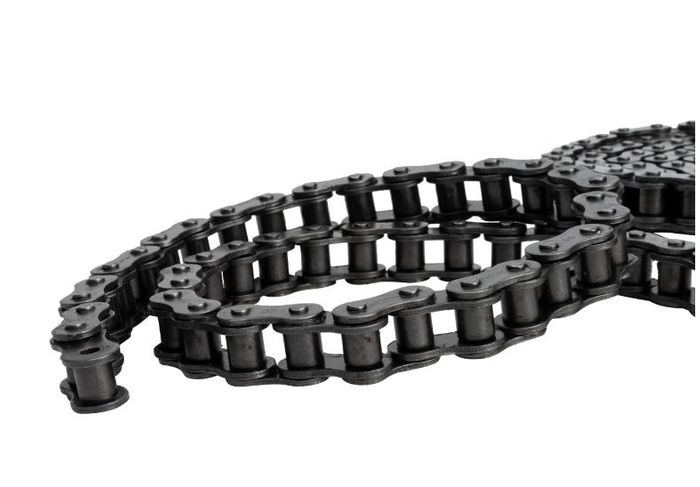

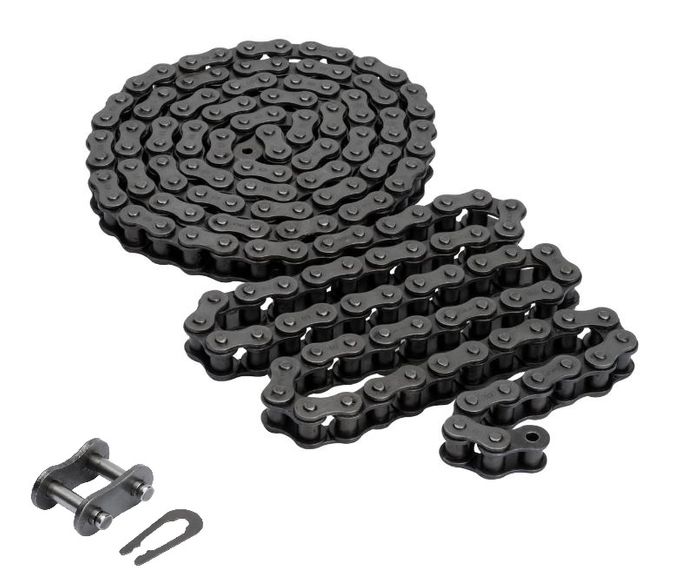

Simplex chain, ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. SKF chains are manufactured in state-of-the-art facilities with tight quality controls.

  • Provide a strong chain
  • Cost-effective
  • Reduce maintenance
  • Extend the mean time between failures
  • All products conform to ISO, and standards including ANSI, DIN and JIS

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch31.75 mm
Roller diameter max19.05 mm
Width between inner plates min18.9 mm
Pin diameter max9.53 mm
Plate height max30 mm
Plate thickness max4 mm

Properties

Chain number100-1
StandardANSI
TypeRoller chain
Weight per meter3.91 kg

Logistics

Product net weight11.9 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1-1/4 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    10FT BOX
  • Chain Size:
    100-1 (SINGLE ROW)
