SKF ROLLER CHAIN 1-1/4- 100 -1 ROW -JOINER

ASA (1-1/4 INCH) PITCH - SINGLE ROW
Stock Code:
PHC100-1-CONNS
$11.85 incl GST

Stock Locations

  • Ballarat:
    17 In Stock
  • Shepparton:
    Special Order
20 On Order
Make an Enquiry
Add to Favourites

Description

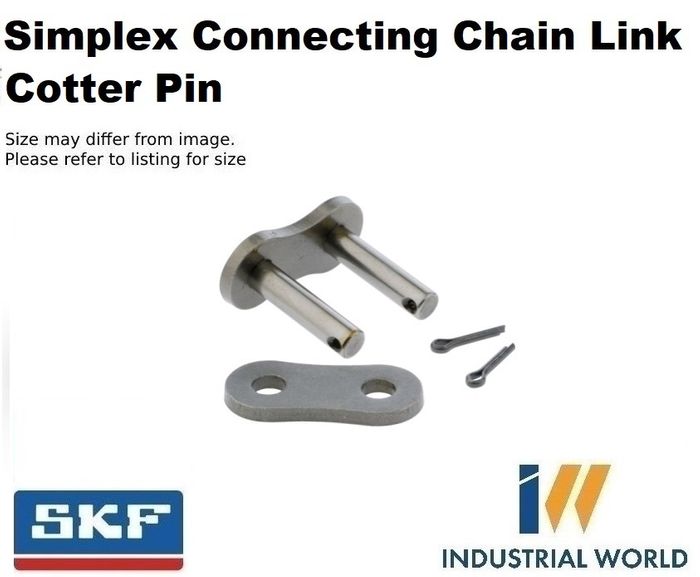

PHC 100-1C/L
Simplex connecting chain link, ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Simplex connecting chain links are used to connect the two ends of a chain together. Both the spring clip and cotter pin type connecting links can be disassembled and replaced easily. The riveted type provides a very strong link, and has a similar fatigue strength as the other links in the chain.

  • Provide a strong link
  • Easy to disassemble and replace
  • Available as simplex, duplex and triplex

This is a Roller Chain Link, to allow your chain loop to be closed at the desired length.

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch31.75 mm
Roller diameter max19.05 mm
Width between inner plates min18.9 mm
Pin diameter max9.53 mm
Plate height max30 mm
Plate thickness max4 mm

Properties

Chain number100-1
StandardANSI
Link typeConnecting link
Weight per meter3.91 kg

Logistics

Product net weight0.109 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1-1/4 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    JOINER LINK
  • Chain Size:
    100-1 (SINGLE ROW)
