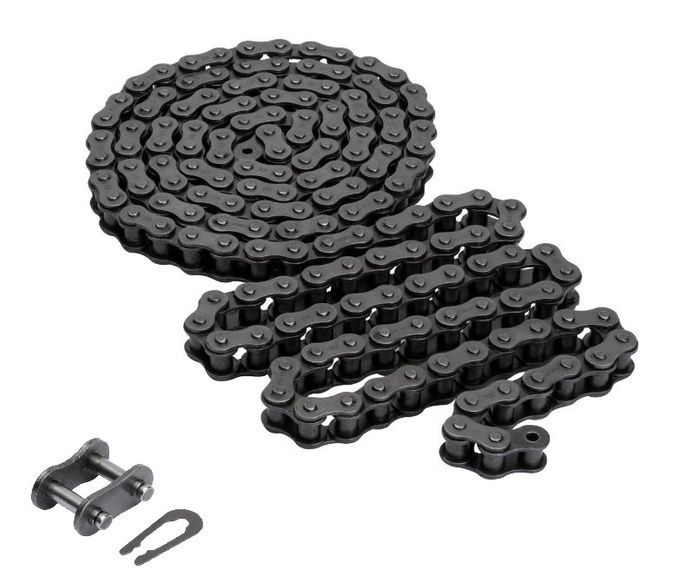

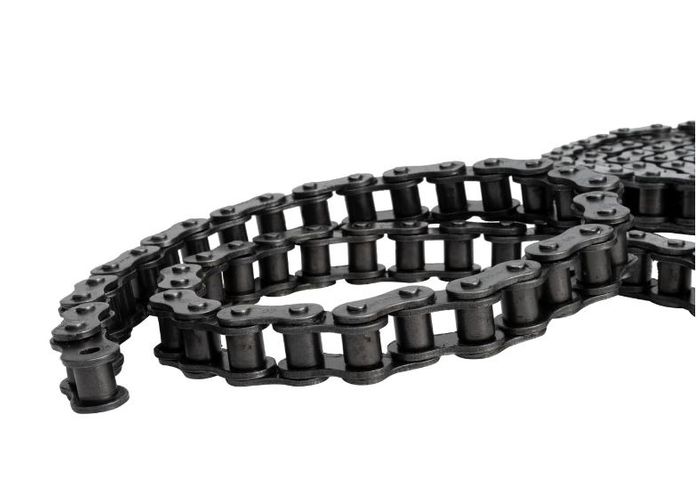

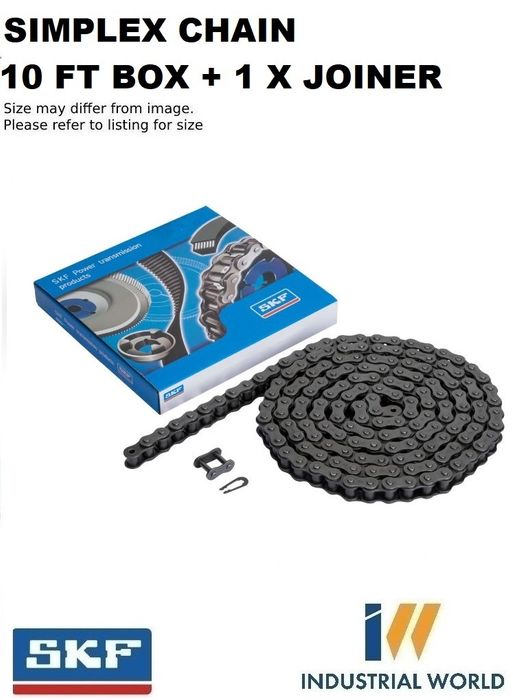

SKF ROLLER CHAIN 1/2- 08B -1 ROW -10FT BOX

BS (1/2 INCH) PITCH - SINGLE ROW
Stock Code:
PHC08B1-BOX
$65.04 incl GST

Stock Locations

  • Ballarat:
    20 In Stock
  • Shepparton:
    41 In Stock
40 On Order
Make an Enquiry
Add to Favourites

Description

PHC 08B-1X10FT
Simplex chain, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. SKF chains are manufactured in state-of-the-art facilities with tight quality controls.

  • Provide a strong chain
  • Cost-effective
  • Reduce maintenance
  • Extend the mean time between failures
  • All products conform to ISO, and standards including ANSI, DIN and JIS

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch12.7 mm
Roller diameter max8.51 mm
Width between inner plates min7.75 mm
Pin diameter max4.45 mm
Plate height max11.8 mm
Plate thickness max1.6 mm

Properties

Chain number08B
StandardBS
Weight per meter0.69 kg

Logistics

Product net weight2.1 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1/2 Inch
  • Chain Series:
    BRITISH (BS)
  • Type:
    10FT BOX
  • Chain Size:
    08B-1 (SINGLE ROW)
