SKF ROLLER CHAIN 1-1/4- 100H -1 ROW -JOINER

ASA (1-1/4 INCH) PITCH HEAVY DUTY- SINGLE ROW
Stock Code:
PHC100H-1-CONNS
$15.95 incl GST

Stock Locations

  • Ballarat:
    58 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHC 100H-1C/L

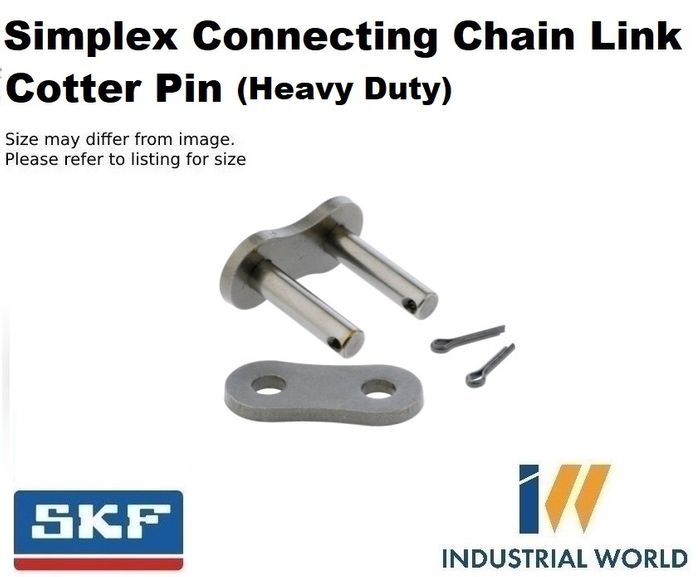

Extra-strong simplex connecting chain link (HD), ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Extra-strong simplex connecting chain links are used to connect the two ends of a chain together. These connecting links are well suited for applications where shock loads are higher, operating speeds are lower, or there are other severe operating conditions.

  • Provide a very strong link
  • Can accommodate high shock loads
  • Easy to disassemble and replace
  • Available as simplex, duplex and triplex

Dimensions

Pitch31.75 mm
Roller diameter max19.05 mm
Width between inner plates min18.9 mm
Pin diameter max9.53 mm
Plate height max30 mm
Plate thickness max4.8 mm

Properties

Chain number100H-1
StandardANSI
Link typeConnecting link
Weight per meter4.52 kg

Logistics

Product net weight0.28 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1-1/4 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    JOINER LINK
  • Chain Size:
    100H-1 HEAVY DUTY (SINGLE ROW)
