SKF ROLLER CHAIN 1- 16B -1 ROW -JOINER

BS (1 INCH) PITCH - SINGLE ROW
Stock Code:
PHC16B1-CONNS
$5.39 incl GST

Stock Locations

  • Ballarat:
    103 In Stock
  • Shepparton:
    12 In Stock
Make an Enquiry
Add to Favourites

Description

PHC 16B-1C/L

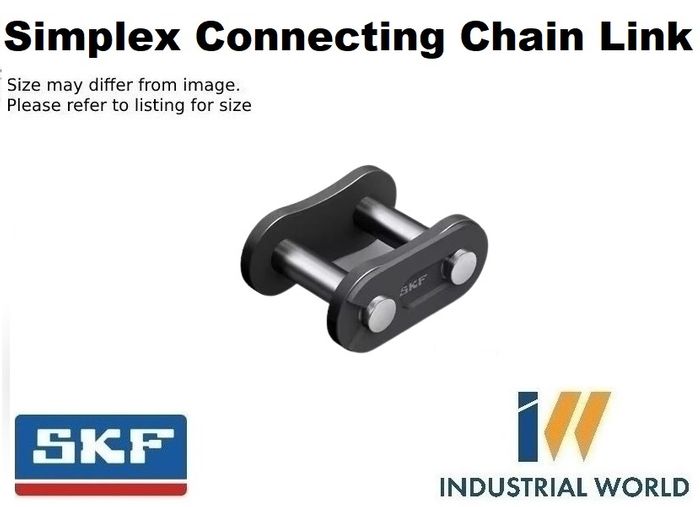

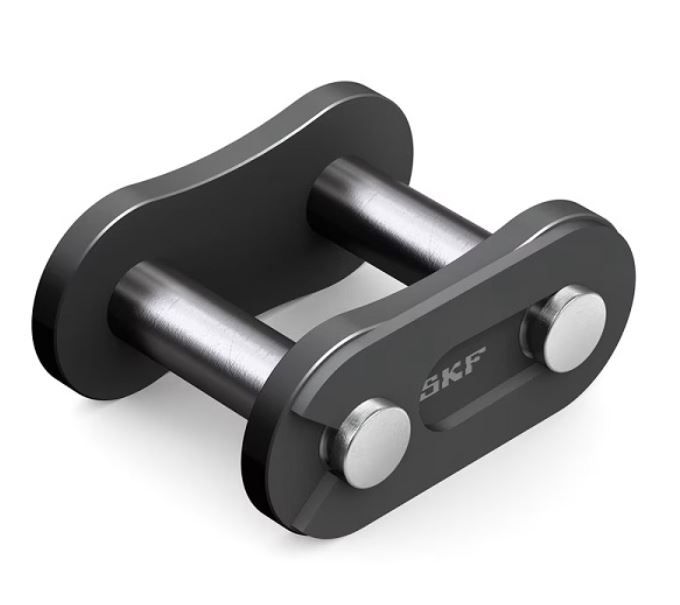

Simplex connecting chain link, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Simplex connecting chain links are used to connect the two ends of a chain together. Both the spring clip and cotter pin type connecting links can be disassembled and replaced easily. The riveted type provides a very strong link, and has a similar fatigue strength as the other links in the chain.

  • Provide a strong link
  • Easy to disassemble and replace
  • Better wear resistance than ANSI connecting links
  • Available as simplex, duplex and triplex

Dimensions

Pitch25.4 mm
Roller diameter max15.88 mm
Width between inner plates min17.02 mm
Pin diameter max8.28 mm
Plate height max21 mm
Plate thickness max3.1 mm

Properties

Chain number16B-1
StandardBS
Link typeConnecting link
Weight per meter2.71 kg

Logistics

Product net weight0.067 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH (BS)
  • Type:

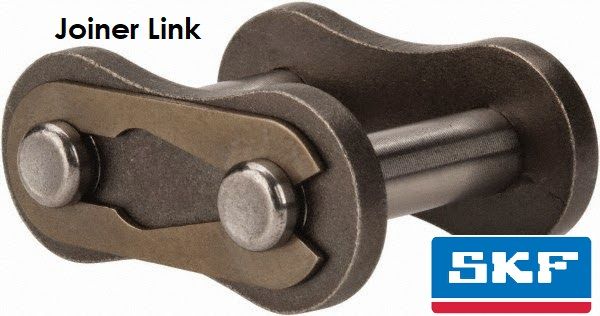

    JOINER LINK
  • Chain Size:
    16B-1 (SINGLE ROW)
