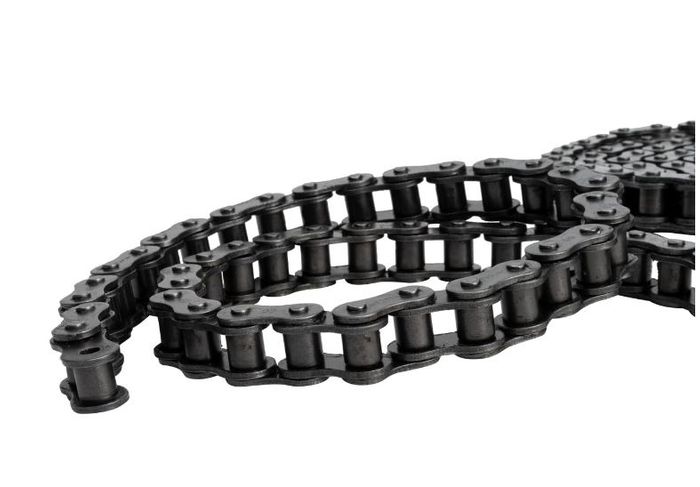

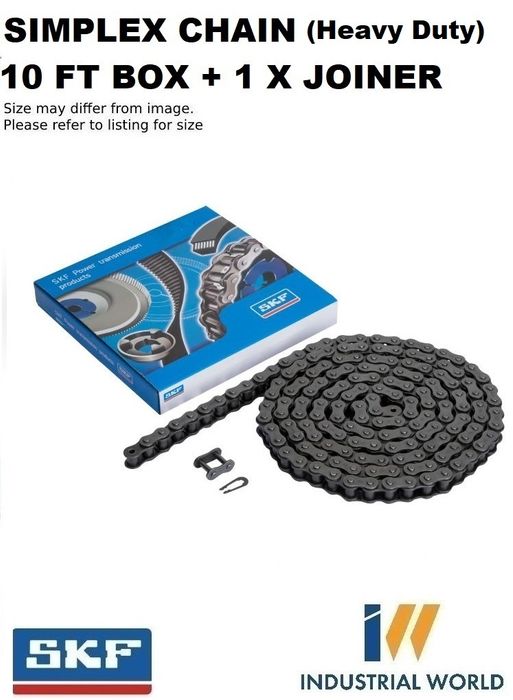

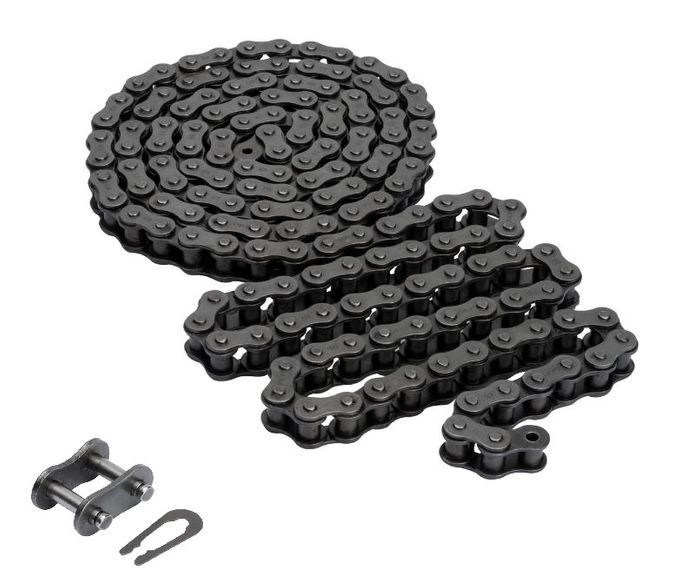

SKF ROLLER CHAIN 1/2 - 40H -1 ROW -10FT BOX

ASA (1/2 INCH) PITCH -HEAVY DUTY SINGLE ROW
Stock Code:
PHC40H-1-BOX
$86.71 incl GST

Stock Locations

  • Ballarat:
    20 In Stock
  • Shepparton:
    6 In Stock
Make an Enquiry
Add to Favourites

Description

PHC 40H-1X10FT
Extra-strong simplex chain (HD), ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. These chains are well suited for applications where shock loads are higher, operating speeds are lower, or there are other severe operating conditions.

  • Provide a very strong chain
  • Accommodate high shock loads
  • Easy to disassemble and replace
  • Available as simplex and duplexAll products conform to ISO, and standards including ANSI, DIN and JIS

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch12.7 mm
Roller diameter max7.95 mm
Width between inner plates min7.85 mm
Pin diameter max3.96 mm
Plate height max12 mm
Plate thickness max2.03 mm

Properties

Chain number40H-1
StandardANSI
TypeRoller chain
Weight per meter0.82 kg

Logistics

Product net weight2.5 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1/2 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    10FT BOX
  • Chain Size:
    40H-1 HEAVY DUTY (SINGLE ROW)
