SKF ROLLER CHAIN 3/4 - 60H -1 ROW -JOINER

ASA (3/4 INCH) PITCH - HEAVY DUTY SINGLE ROW
Stock Code:
PHC60H-1-CONNS
$3.71 incl GST

Stock Locations

  • Ballarat:
    428 In Stock
  • Shepparton:
    159 In Stock
200 On Order
Make an Enquiry
Add to Favourites

Description

PHC 60H-1C/L

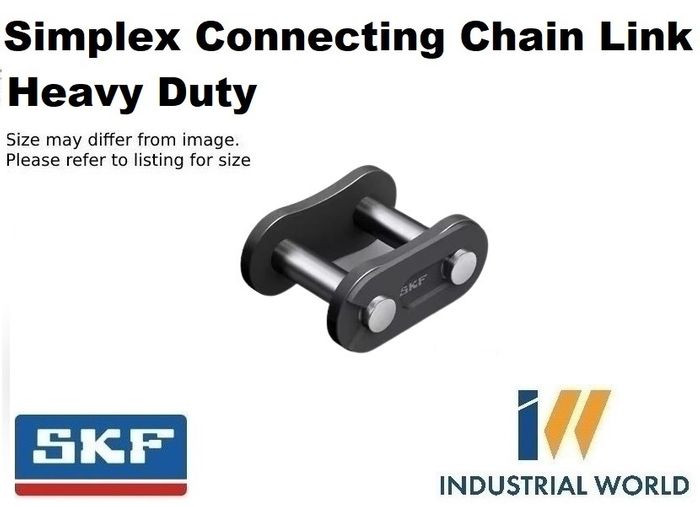

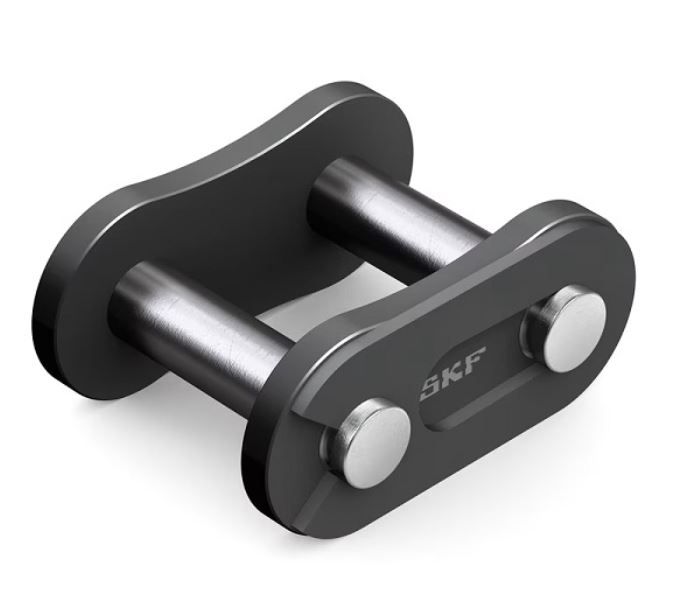

Extra-strong simplex connecting chain link (HD), ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Extra-strong simplex connecting chain links are used to connect the two ends of a chain together. These connecting links are well suited for applications where shock loads are higher, operating speeds are lower, or there are other severe operating conditions.

  • Provide a very strong link
  • Can accommodate high shock loads
  • Easy to disassemble and replace
  • Available as simplex, duplex and triplex

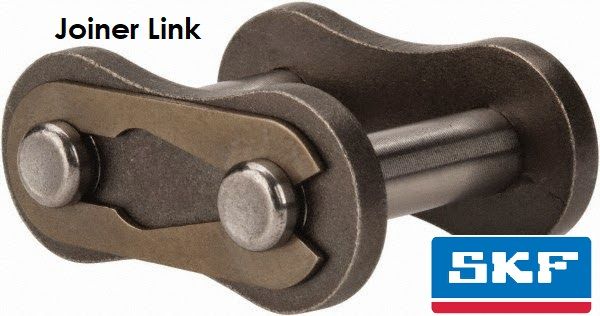

This is a Roller Chain Link, to allow your chain loop to be closed at the desired length.

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch19.05 mm
Roller diameter max11.91 mm
Width between inner plates min12.57 mm
Pin diameter max5.94 mm
Plate height max18 mm
Plate thickness max3.25 mm

Properties

Chain number60H-1
StandardANSI
Link typeConnecting link
Weight per meter1.87 kg

Logistics

Product net weight0.07 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    3/4 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    JOINER LINK
  • Chain Size:
    60H-1 HEAVY DUTY (SINGLE ROW)
