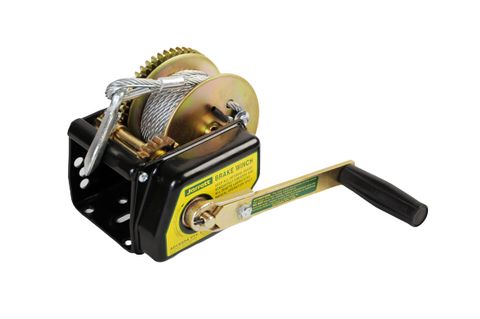

Jarrett - 10:1 Brake Winch with S Hook

500Kg - Cable 7.5 Mtr x 5mm
Stock Code:
F18260
$318.12 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

8000 Series Brake Winch

F18260 with Cable Ø6mm - 10:1 ratio model (500kg)

When packaged, the winch and handle are separate and need to be assembled as per the instructions included. Failing to assemble as per the instruction could result in non-actuation of the braking mechanism. To assemble, the handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.

Features:

  • Heavy duty 4mm winch body
  • Steel bushes
  • Self actuating brake mechanism
  • Fully enclosed brake
  • Electroplated zinc cobalt
  • Powder coated finish
  • Detachable handle
  • Spare kits available

F18230 is used on 300kg Backsaver Crane – Product Code: F12643
F18260 is used on 500kg Backsaver Crane – Product Code: F19001

Recommended for lifting applications.
Webbing cannot be used on these winches
Self actuating brake requires a minimum of 18kg to operate safely.
Jarrett Winches and Cranes are not designed for the movement of people

Model : F18260
Gear Ratio: 10:1
Application: Lifting
Rated Capacity: 500kg (4900N)
Mass (Winch only): 6kg
Type of Brake: Self Actuating
Drum Diameter: 50mm
Flange Diameter: 130mm
Drum Width: 52mm
Cable size: Ø6mm
Maximum Cable Capacity: 12m x Ø6mm
Max. Effort on handle at Rated Load: 18kg
Cable Breaking Strain: 2712kg
Cable (Galv) as supplied: 7.5m x Ø6mm
Fastening Device: Snap Hook

F18230 is used on 300kg Backsaver Crane – Product Code: F12643
F18260 is used on 500kg Backsaver Crane – Product Code: F19001

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cable
  • Brand:
    Jarrett
  • Type:
    Brake Winch
  • Size:
    500 Kg
  • Length:
    7.5 Mtr
