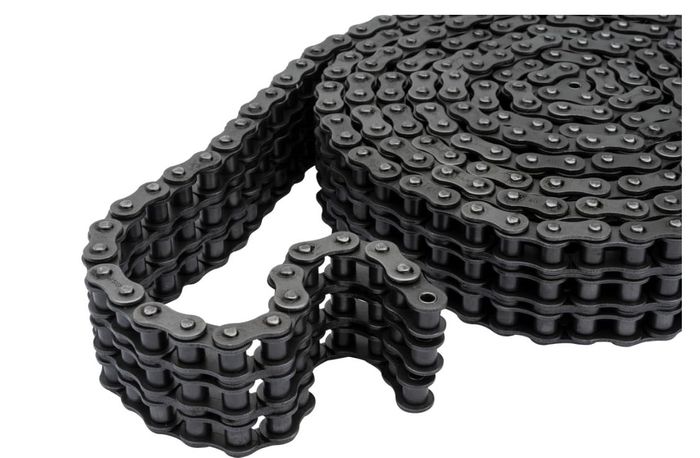

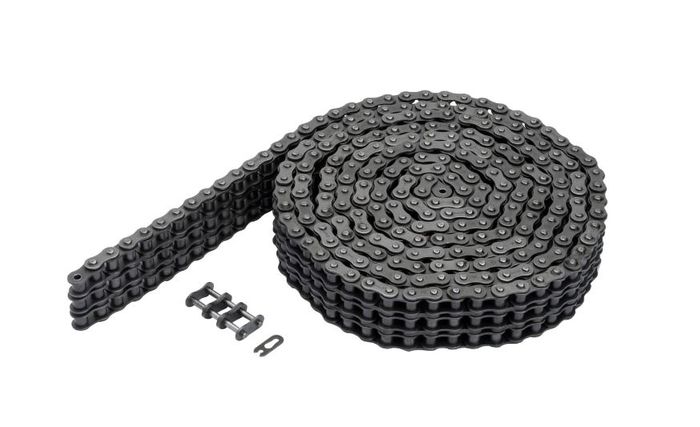

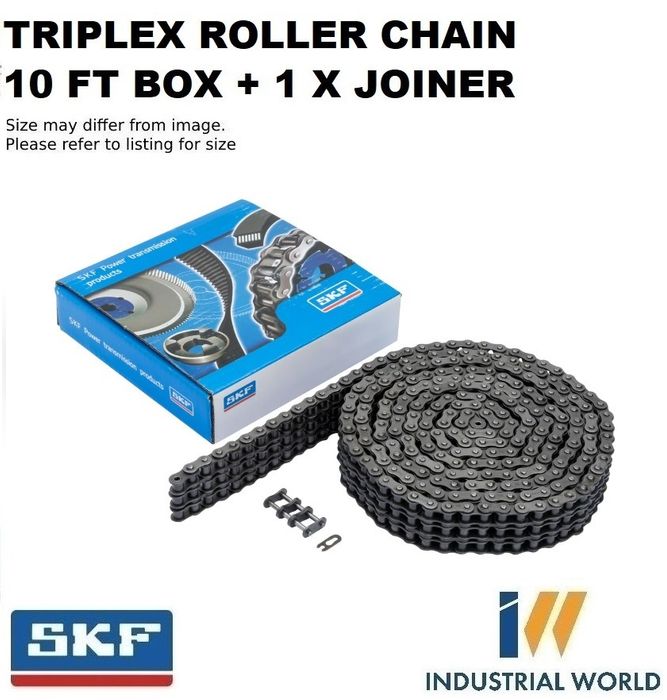

SKF ROLLER CHAIN 1- 16B -3 ROW -10FT BOX

BS (1 INCH) PITCH - TRIPLEX (3 ROWS)
Stock Code:
PHC16B3-BOX
$680.02 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    Special Order

Description

PHC 16B-3X10FT

SKF ROLLER CHAIN 1- 16B -3 ROW -10FT BOX

SKF Triplex chain, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. SKF chains are manufactured in state-of-the-art facilities with tight quality controls.

  • Provide a strong chain
  • Cost-effective
  • Reduce maintenance
  • Extend the mean time between failures
  • Used in domestic, industrial, and agricultural machinery
  • All products conform to ISO standards and other industrial standards such as ANSI, BS, DIN and JIS.

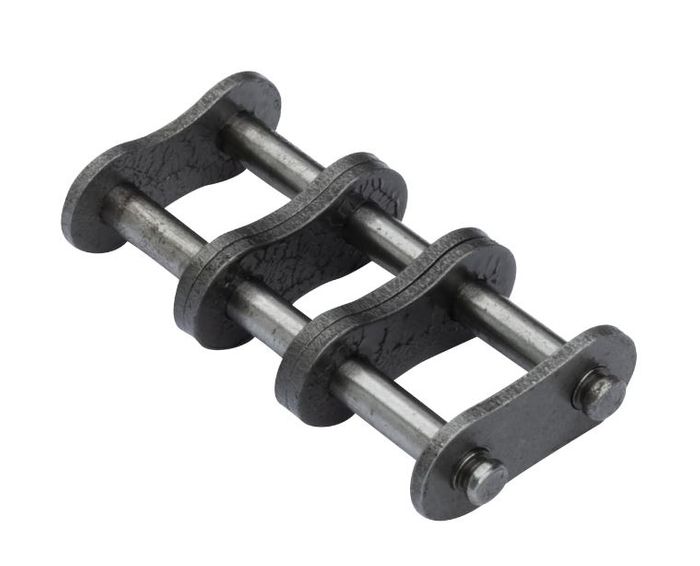

Be sure to also get a conn or crank to ensure your chain loop can be closed at the right length.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pin diameter max8.28 mm
Pitch25.4 mm
Plate height max21 mm
Plate thickness max3.1 mm
Roller diameter max15.88 mm
Width between inner plates min17.02 mm

Properties

Chain number16B
StandardBS
Weight per meter8.13 kg

Click here for catalogue information




Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    3
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH (BS)
  • Type:
    10FT BOX
  • Chain Size:
    16B-3 (TRIPLE ROW)
