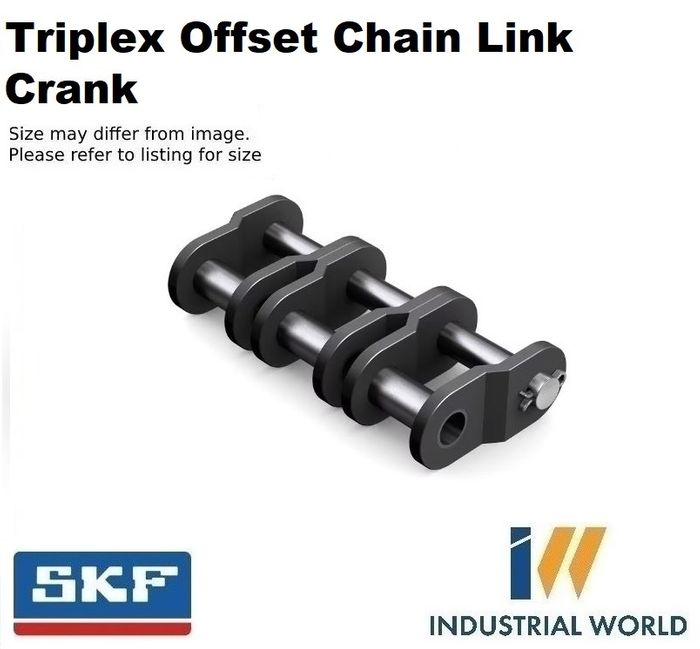

SKF ROLLER CHAIN 1- 16B -3 ROW -OFFSET LINK

BS (1 INCH) PITCH - TRIPLEX (3 ROWS)
Stock Code:
PHC16B3-CRANK
$35.83 incl GST

Stock Locations

  • Ballarat:
    19 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHC 16B-3O/L

SKF ROLLER CHAIN 1- 16B -3 ROW -OFFSET LINK

Triplex offset chain link, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Triplex offset chain links are used when an odd number of pitches are required in a chain.

  • Provide a strong link
  • Easy to disassemble and replace
  • Better wear resistance than ANSI connecting links
  • Available as simplex, duplex and triplex

This is a Roller Chain Link, to allow your chain loop to be closed at the desired length.

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch9.53 mm
Roller diameter max6.35 mm
Width between inner plates min5.72 mm
Pin diameter max3.28 mm
Plate height max8.2 mm
Plate thickness max1.3 mm

Properties

Chain number06B-2
StandardBS
Link typeOffset link
Weight per meter0.77 kg

Logistics

Product net weight0.0082 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    3
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH (BS)
  • Type:
    OFFSET LINK
  • Chain Size:
    16B-3 (TRIPLE ROW)
