SKF - Infrared Thermometer Emissivity 0.95

-60 Dec C +625 Dec C 16:1 Ratio
Stock Code:
TKTL11_SKF
$218.82 incl GST

Stock Locations

  • Ballarat:
    10 In Stock
  • Shepparton:
    2 In Stock
Make an Enquiry
Add to Favourites

Description

TKTL 11

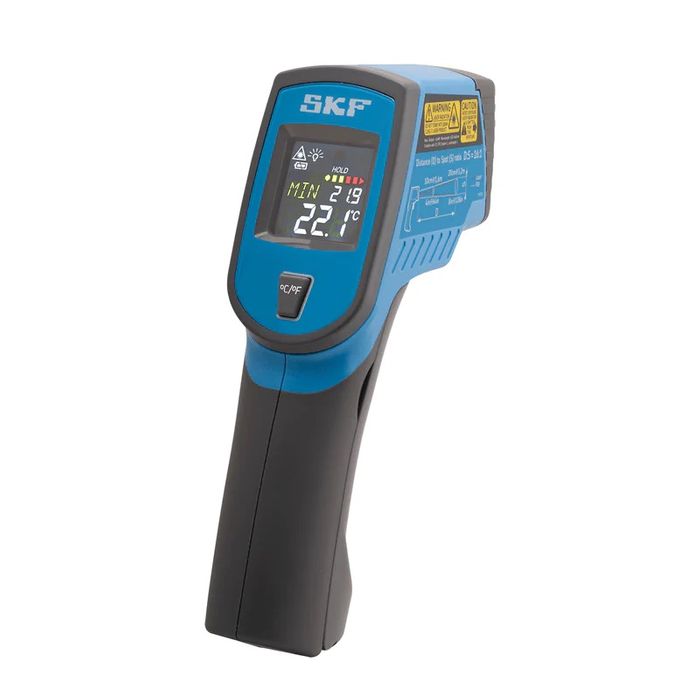

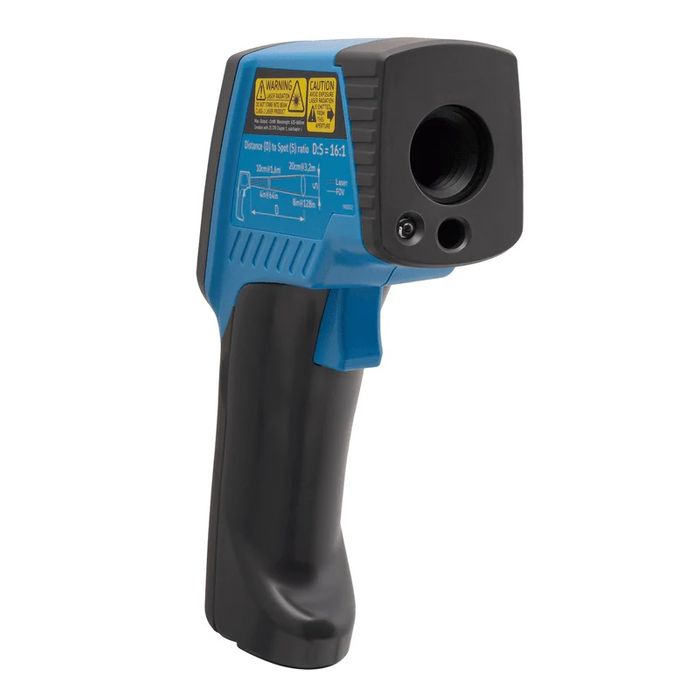

SKF Infrared thermometer

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications, this in order to perceive information on abnormalities in operating. SKF Infrared thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

  • LCD colour display
  • 8 laser targeting
  • Fixed emissivity
  • High accuracy
  • Fast response time
  • DS ratio of 16:1

Performance

Temperature range using infrared-60.0  –  625.0 °C
Distance to spot ratio16:1

Properties

Response time1 000 ms
Spectral response8.0  –  14.0 µm
AlarmsHigh and low level alarm with warning sound
Laser type8 x red targeting laser dots
Laser wavelength635 nm
Laser power class2 mW
Tripod connectorYes, (1/4-20 UNC)
Power adapterNo
Recommended applicationsUsed in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
DisplayLCD Color with LED backlighting
Resolution
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
Measurement modes
Maximum
Minimum
Average
Difference (between min and max)
Auto switch offAutomatic, 15 seconds after trigger release
Battery2x AAA (Alkaline (incl.) or Rechargable)
Battery life9 h
Instrument dimensions119 x 172 x 48 mm
Housing materialPC/ABS blend
Colour
Blue
Dark Grey
Instrument weight240 g
Degree of protection (IP)IP 30
Operating temperature range0.0  –  50.0 °C
Recommended storage temperature-10.0  –  60.0 °C
Relative humidity10 to 95%, non-condensing
Content
1x IR thermometer (TKTL 11)
2x AAA Alkaline batteries
1x instructions for use (MP5493)
Total product weight0.36 kg

Logistics

Product net weight0.41 kg
eClass code23-05-19-01
UNSPSC code41112202
