SKF ROLLER CHAIN 1/2- 08B -2 ROW -JOINER

BS (1/2 INCH) PITCH - DUPLEX (2 ROWS)
Stock Code:
PHC08B2-CONNS
$3.66 incl GST

Stock Locations

  • Ballarat:
    53 In Stock
  • Shepparton:
    11 In Stock
Make an Enquiry
Add to Favourites

Description

PHC 08B-2C/L

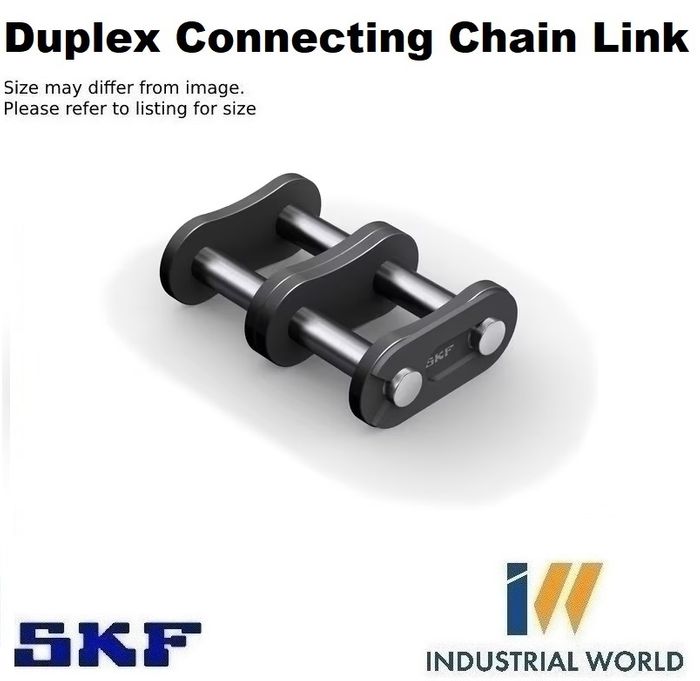

Duplex connecting chain link, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Duplex connecting chain links are used to connect the two ends of a chain together. Both the spring clip and cotter pin type connecting links can be disassembled and replaced easily. The riveted type provides a very strong link, and has a similar fatigue strength as the other links in the chain.

  • Provide a strong link
  • Easy to disassemble and replace
  • Better wear resistance than ANSI connecting links
  • Available as simplex, duplex and triplex

This is a Roller Chain Link, to allow your chain loop to be closed at the desired length.

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch12.7 mm
Roller diameter max8.51 mm
Width between inner plates min7.75 mm
Pin diameter max4.45 mm
Plate height max11.8 mm
Plate thickness max1.6 mm

Properties

Chain number08B-2
StandardBS
Link typeConnecting link
Weight per meter1.34 kg

Logistics

Product net weight0.0187 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    2
  • Pitch:
    1/2 Inch
  • Chain Series:
    BRITISH (BS)
  • Type:
    JOINER LINK
  • Chain Size:
    08B-2 (DOUBLE ROW)
