SKF ROLLER CHAIN 1-1/4- 20B -1 ROW -OFFSET LINK

BS (1-1/4 INCH) PITCH - SINGLE ROW

Stock Code:

PHC20B1-CRANK

$24.53 incl GST

Stock Locations

Ballarat:

7 In Stock
Shepparton:

6 In Stock

10 On Order

Make an Enquiry

Add to Favourites

Description

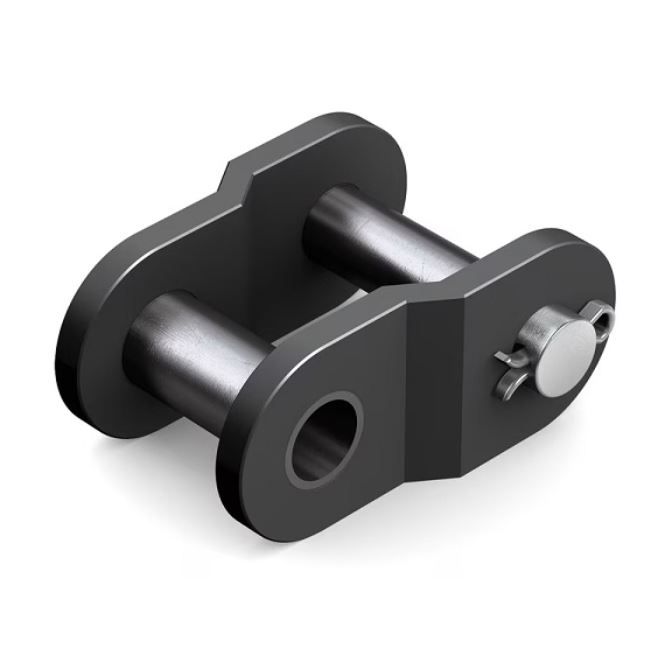

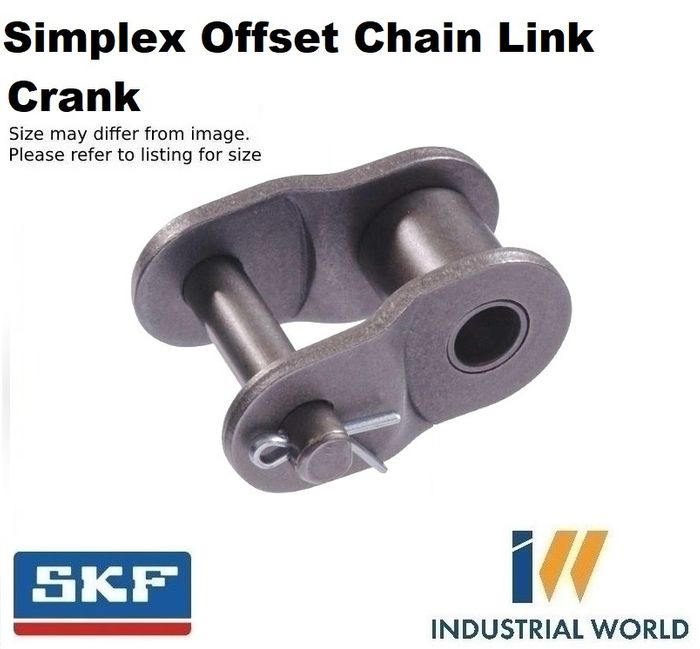

PHC 20B-1O/L

SIMPLEX OFFSET CHAIN LINK, EUROPEAN STANDARDS (EN)

This is a Roller Chain Link, to allow your chain loop to be closed at the desired length.

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Duplex offset chain links are used when an odd number of pitches are required in a chain.

Provide a strong link
Easy to disassemble and replace
Better wear resistance than ANSI connecting links
Available as simplex and duplex

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

Roller chains are used for transmission of mechanical power on many kinds of domestic, industrial, and agricultural machinery. They are an essential part of power transmission for anything industry related.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch	31.75 mm
Roller diameter max	19.05 mm
Width between inner plates min	19.56 mm
Pin diameter max	10.19 mm
Plate height max	26.4 mm
Plate thickness max	3.5 mm
