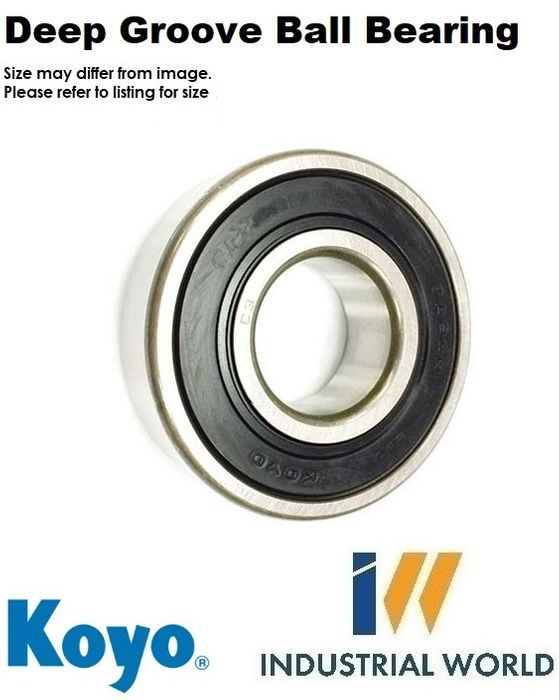

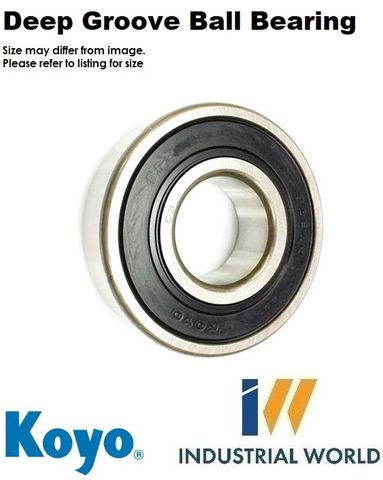

Koyo - Deep Groove Ball Bearing

20 X 47 X 14
Stock Code:
6204-2RS-C3_KOYO
$10.03 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6204-2RS-C3 KOYO

Deep Groove Ball Bearing Rubber Seal (C3 Clearance) - 6200 Series

  • Deep Groove Ball Bearing Rubber Seal with C3 Clearance.
  • 6200 Series.

About Deep Groove Ball Bearing

  • Deep groove ball bearings are available in a variety of sizes and are the most popular of all rolling bearings.
  • This type of bearing supports radial load and a certain degree of axial load in both directions simultaneously.

Shielded/sealed type

  • Simplifies the sealing structure of applications.
  • Greasing is not necessary because bearings are pre-lubricated.

With locating snap ring

  • Bearings with a locating snap ring can be fitted to the housing easily, as the locating snap ring facilitates axial positioning.

Extra-small ball bearings and miniature ball bearings

  • The open type is widely used. Also available are the shielded/sealed type and the flanged type; the latter is easily positioned in the axial direction.

Features Deep Groove Radial Bearing

  • Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
  • The most popular rolling bearing type used in a wide variety of industries and applications.
  • The inner and outer rings have deep uninterrupted grooves.
  • They can support radial loading and a certain degree of axial loading in either direction
  • High-speed capability.
  • The Maximum style not to be used when axial loading or high speed is involved.
  • Sealed and shielded types are filled with an appropriate volume of grease.
  • Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
  • Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel

Main Applications

  • Automotive: Transmissions, electrical devices, truck, and trailer equipment.
  • Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
  • Electrical Equipment: Standard motors, electric appliances for domestic use
  • Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.

Specifications

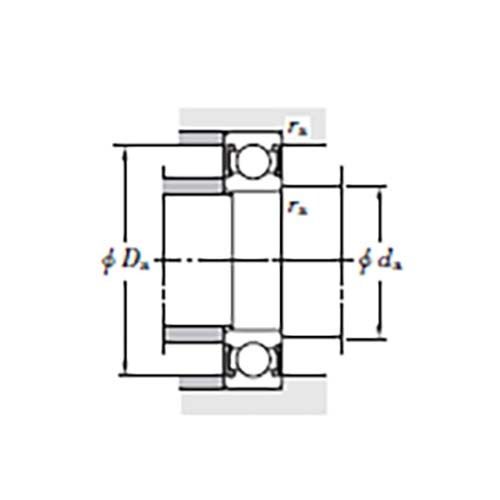

  • Mounting Dimension (mm) Ra Max1
  • Limiting Speed (min-1) Grease lub. (RS, 2RS) (Z)9700
  • Fatigue Load Limit (kN) Cu0.51

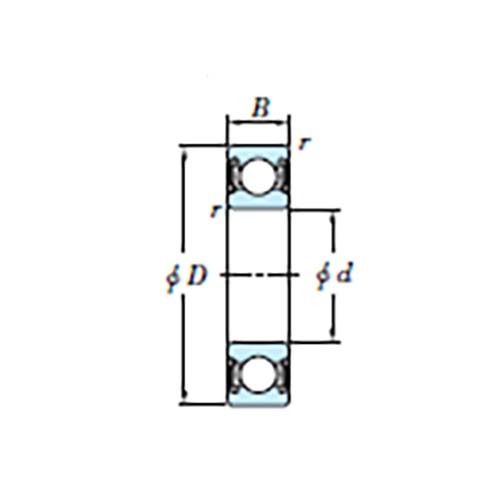

  • Bearing Width B (mm)14
  • Bore Diameter x Outer Diameter x Width (mm) 20 x 47 x 14
  • Mounting Dimension (mm) Da Max 42
  • Boundary Dimension (mm) r min.1
  • Basic Load Rating (kN) C0r6.65
  • Outside Diameter D (mm) 47
  • Mounting Dimension (mm) Da Min 25
  • Factor F 013.2
  • Basic Load Rating (kN) Cr16
  • Bore Diameter d (mm) 20

Koyo

Click here for deep groove ball bearing information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    20 mm
  • Material:
    Chrome steel
  • Width:
    14 mm
  • Brand:
    Koyo
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    47 mm
  • Style:
    Standard
