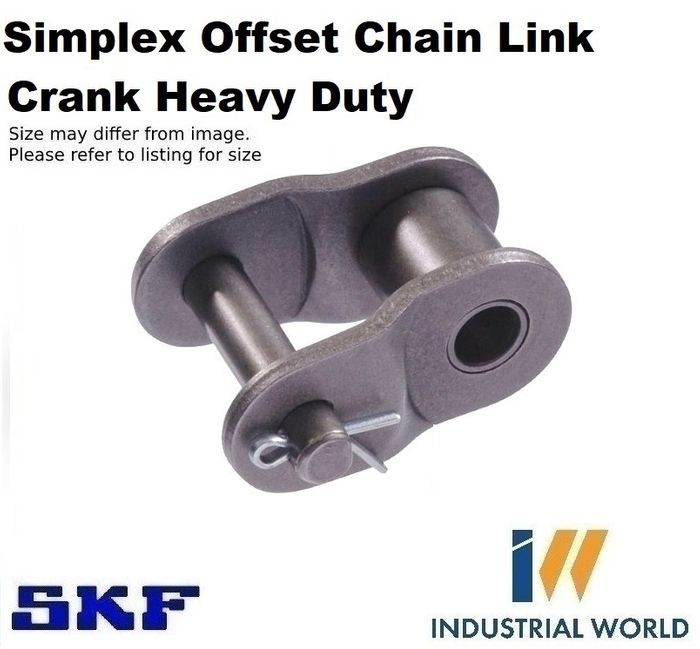

SKF ROLLER CHAIN 1 - 80H -1 ROW -OFFSET LINK

ASA (1 INCH) PITCH - HEAVY DUTY SINGLE ROW
Stock Code:
PHC80H-1-CRANK
$15.95 incl GST

Stock Locations

  • Ballarat:
    110 In Stock
  • Shepparton:
    10 In Stock
50 On Order
Make an Enquiry
Add to Favourites

Description

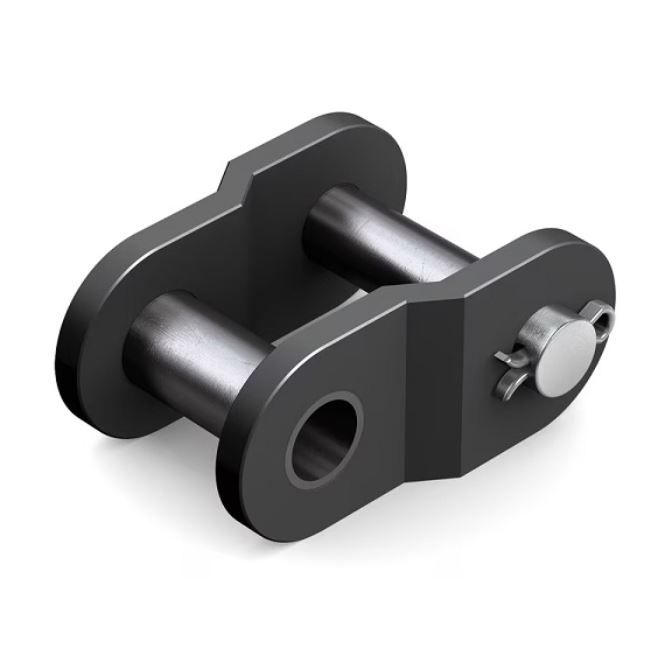

PHC 80H-1O/L
Extra-strong simplex offset chain link (HD), ANSI

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Extra-strong simplex offset chain links are used when an odd number of pitches are required in a chain. These offset links are well suited for applications where shock loads are higher, operating speeds are lower, or there are other severe operating conditions.

  • Provide a very strong link
  • Can accommodate high shock loads
  • Easy to disassemble and replace
  • Available as simplex and duplex

Conns and Cranks differ very slightly, Conns allowing for an even number of links in your chain and Cranks accommodating odd totals. To be safe, it is best to get one of each.

Roller chains are used for transmission of mechanical power on many kinds of domestic, industrial, and agricultural machinery. They are an essential part of power transmission for anything industry related.

We stock British & American standards, with Double pitch, stainless steel and heavy variants also available.

Dimensions

Pitch25.4 mm
Roller diameter max15.88 mm
Width between inner plates min15.75 mm
Pin diameter max7.92 mm
Plate height max24 mm
Plate thickness max4 mm

Properties

Chain number80H-1
StandardANSI
Link typeOffset link
Weight per meter3.1 kg

Logistics

Product net weight0.085 kg
eClass code23-17-04-90
UNSPSC code26111505

Click here for catalogue information

View product table

SKF Chain Calculator


Product Guide Attached

Still can't find what you're looking for? Our website is being continuously updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    STEEL
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Number of Rows:
    1
  • Pitch:
    1 Inch
  • Chain Series:
    AMERICAN (ANSI)
  • Type:
    OFFSET LINK
  • Chain Size:
    80H-1 HEAVY DUTY (SINGLE ROW)
