Richmond - Stainless Steel Excel Bolt Swivel Casto

125mm Reb Poly Wheel 200kg
Stock Code:
S5148
$119.79 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order

Description

DESCRIPTION

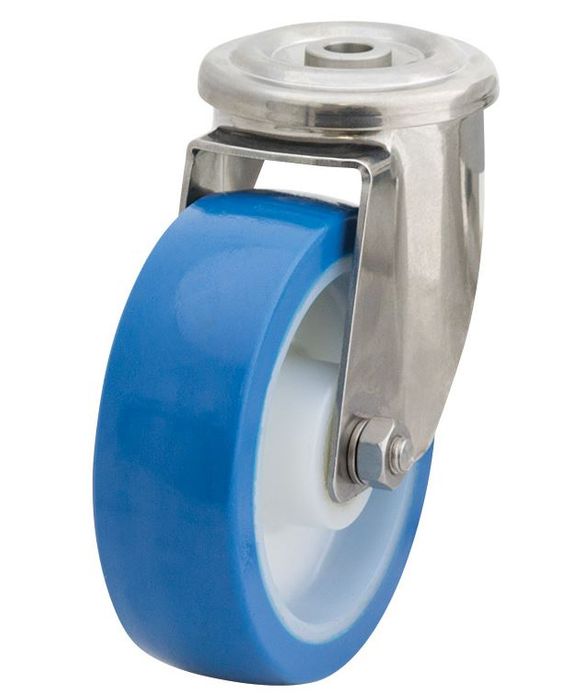

125mm Reb Poly Wheel 200kg Capacity Castor (S5148)



Product Specifications

Wheel Diameter: 125mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Rebound Polyurethane

Wheel Code: RP5072

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 157mm

Swivel Radius: 112mm

Bolt Hole Size: 12mm

Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Heavy duty pressed stainless steel frame combined with full stainless componentry make the Excel Series the ideal choice for use in wet areas, frequent wash down applications and food and health industries. When hygiene is of the utmost importance, this bolt hole castor has the ability to be fitted to an array of equipment and trolleys with various fittings including; pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt.

The S5148 from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is one of our stainless steel excel bolt range and has a maximum capacity of 200kg. The S5148 wheel is fitted with stainless steel roller bearings and is mounted with a bolt. The swivel frame allows for full 360° swivel rotation. The diameter of the rebound polyurethane wheel is 125mm, the wheel width is 35mm and can be ordered separately (RP5072). For the same castor with a brake, see S5148B.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M12 Hole
  • Material:
    Poly - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    200 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
