6150mm 100HP CL.21SPL F/M-6ML

Stock Code:

B7234_BARECO

$402.53 incl GST

B7234 BARECO

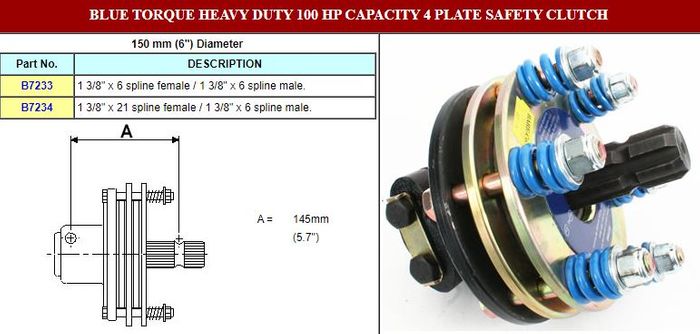

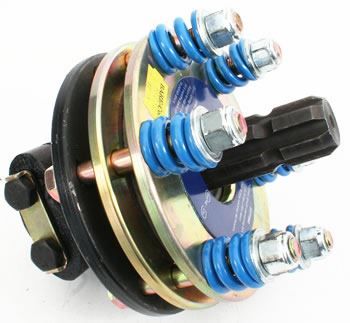

Blue Torque HD Safety Clutch 6" (100HP) 1 3/8"21SPLx6SPL

100 HP Capacity,

6" (150mm) Diameter,

A: 5.7" (145mm),

4 Plates.

1 3/8" x 21 spline female / 1 3/8" x 6 spline male.

REMEMBER THIS!

To adjust these BARE-Co PTO clutches:

For 150 mm (6") Diameter Clutch - Basic Spring Length 28.6mm (1 1/8").

For 200 mm (8") Diameter Clutch - Basic Spring Length 31.75mm (1 1/4").

Adjust to Slip on Overload.

At 6 Months, back off to polish discs.

Tighten Shaft Clamping Bolts as Below. Repeat after 8 Hours + every 40 hours.

Pair of 1/2" dia Clamp Bolts - 75 ft lbs,

Pair of 5/8 " dia Clamp Bolts - 150 ft lbs,

Single Cotter Clamp Bolt - 100 ft lbs.
