PIN IMPLEMENT CAT1 THREAD 1X

Stock Code:
B101_BARECO
$9.43 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    2 In Stock

Description

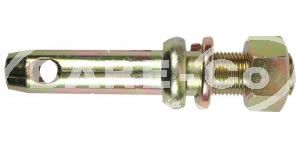

B101 BARECO

Implement Pin Cat 1 22mm x 1" (Nut)

Implement Mounting Pin.

Dimensions:

  • Shoulder/Shank Dia (Implement Hole Dia): 1" SAE (25.4mm), 14TPI.
  • Tractor Linkage Category: Category 1,
  • Pin Diameter: 22mm
  • Applications: HOWARD - BONEL - NAPIER - ANVIL.
  • Cold forged pins to 1 1/8" (28.6mm) dia for consistent grain flow, maximum strength and superior surface finish.
  • Large radius at fracture point (difficult to achieve in cold forging).
  • Guaranteed base material to min. specifications S1040 carbon steel.
  • All pins correct length to accept stay bars or next linkage category bush upgrade.
  • Various length stepped shoulders replaced by straight shank to increase strength and reduce your inventory. Stepped types available for 40 year old Ferguson tiller and mowers.

Only BARE-Co have invested in special thin wall nuts, to provide clearance for straight shank design on plough cross shafts etc.

  • Part Number: B101
  • OEM part number: 1161-5, 8126-015, AG101, MF101, S.5190, S5190,

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Bare-CO
