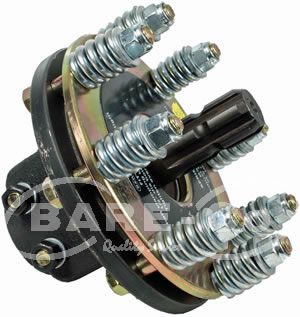

1 1/4 BORE 60HP SLIP CLUTCH

Stock Code:

B6693_BARECO

$339.76 incl GST

B6693 BARECO

Safety Clutch 8"(60HP) 1 1/4"Fmx 1 3/8"Mx6SPL

Safety Clutch.

Dimensions:

60 HP Capacity,

8" (200mm) Diameter,

A: 5.2" (130mm),

1 1/4" Round bore female (1/4" key),

1 3/8" x 6 spline male.

REMEMBER THIS!

To adjust Standard Duty (Silver or Gold Spring) BARE-Co PTO clutches:

Compress springs fully then back off 2 turns.

Fine tune so that the clutch slips occasionaly.

Once per year release springs completely and allow clutch to slip to polish pressure plate.

When Fitting Clutch:

Pair of 1/2" dia Clamp Bolts - 75 ft lbs,

Pair of 5/8 " dia Clamp Bolts - 150 ft lbs,

Single Cotter Clamp Bolt - 100 ft lbs.

Re-tension Clamp Bolts after 10 Hours Use - then Every 100 Hours.

Note: LOOSE BOLTS - STRIPPED SPLINES.
Part Number: B6693
