8 SER SHFT 1 MTR 40 20SPL+CLMP

Stock Code:
DC8105_BARECO
$486.04 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

DC8105 BARECO

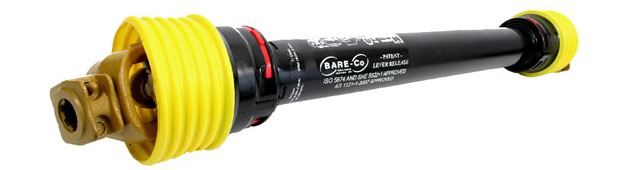

PTO Shaft 1mtr (40") with Clamp Yokes (20SPL) and QR Yoke (20SPL) 8 Series

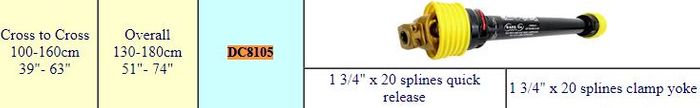

Dimensions:
100-160cm (40"-63") Cross to Cross Length,

130-180cm (51"-71") Overall Length,

8 Series.

35mm x 106.5mm x 125mm (approx.) Triangular Profile Drive Tube.

79KW-106HP @ 540 rpm,

126KW-170HP @ 1000 rpm.

Standard Shaft Includes:

1 3/4" x 20 Splines Clamp Yoke at One End.

1 3/4" x 20 Splines Quick Release Yoke 0n the Other End.

Safety Guard.

Reduce Rated HP by 40% for severe conditions.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:
Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Bare-CO
