PIN IMPLEMENT CAT2 THREAD 19 x 28.6mm PIN

Stock Code:
B197_BARECO
$11.40 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

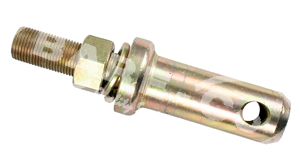

B197 BARECO

Implement Pin Cat 2 28.6mm x 3/4" (Nut)

Dimensions

  • Shoulder/Shank Dia (Implement Hole Dia): 3/4" UNF (19mm).
  • Tractor Linkage Category: Category 2.
  • Pin Diameter: 28.6mm
  • Applications: JARRETT - HOWARD - FARMRITE.
  • Cold forged pins to 1 1/8" (28.6mm) dia for consistent grain flow, maximum strength and superior surface finish.
  • Large radius at fracture point (difficult to achieve in cold forging).
  • Guaranteed base material to min. specifications S1040 carbon steel.
  • All pins correct length to accept stay bars or next linkage category bush upgrade.
  • Various length stepped shoulders replaced by straight shank to increase strength and reduce your inventory. Stepped types available for 40 year old Ferguson tiller and mowers.
  • Only BARE-Co have invested in special thin wall nuts, to provide clearance for straight shank design on plough cross shafts etc.
  • Part Number: B197
  • OEM part number: 1162-1, 8126-021, AG197, MF197, PF197, S.197, S197, VLE5406, VLK5406,

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Bare-CO
