6PTO CLCH 1 3/8ROUND BORE

Stock Code:

B4156_BARECO

$310.21 incl GST

B4156 BARECO

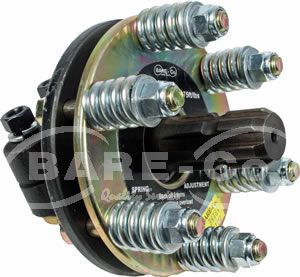

Safety Clutch 6"(40HP) 1 3/8"Fmx 1 3/8"Mx6SPL

Dimensions

40 HP Capacity,

6" (150mm) Diameter,

A: 5.2" (130mm),

1 3/8" Round bore female (3/8" key),

1 3/8" x 6 spline male.

REMEMBER THIS!

To adjust Standard Duty (Silver or Gold Spring) BARE-Co PTO clutches:

Compress springs fully then back off 2 turns.

Fine tune so that the clutch slips occasionaly.

Once per year release springs completely and allow clutch to slip to polish pressure plate.

When Fitting Clutch:

Pair of 1/2" dia Clamp Bolts - 75 ft lbs,

Pair of 5/8 " dia Clamp Bolts - 150 ft lbs,

Single Cotter Clamp Bolt - 100 ft lbs.

Re-tension Clamp Bolts after 10 Hours Use - then Every 100 Hours.

Note: LOOSE BOLTS - STRIPPED SPLINES.
Part Number: B4156
OEM part number: 69.000.102
