W/ANG 4SER SHFT 1M=40 LESS YOK

Stock Code:
WE4105_BARECO
$940.34 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

WE4105 BARECO

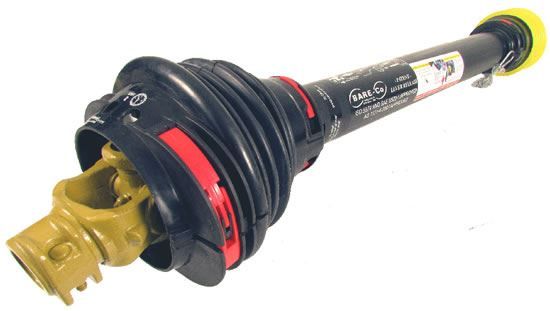

Wide Angle Shaft 1mtr (40") with One End Yoke WB4 Series

Wide Angle (C.V.) Shaft

Dimensions

110 (40") Closed Cross to Cross Shaft Length,

180cm (71") Open Cross to Cross Shaft Length,

132cm (52") Closed Overall Shaft Length,

200cm (78") Open Overall Shaft Length.

WB4 Shaft Series,

24mm (15/16") x 27mm (1 1/16") Triangle Drive Tube,

Power Raiting:

26KW-35HP @ 540 rpm,

42KW-56HP @ 1000 rpm.

1 3/8" x 6 spline yoke on wide angle end.

No end yoke on the plain end.

Will accept standard yoke.

Non wide angle end yoke = standard BARE-Co 4 series.

80�� Wide Angle Joint On Inner Tube End.

For shafts with Wide Angle Joint both ends, select additional joint from Wide Angle Joint Page.

Warning! 80 degree Short Term Operation and Stationary 25 degree Continuous Operation Exceeding 80 degree angle will result in joint ball / socket FAILURE !

NOT COVERED BY WARRANTY.

Tractor turning limiter should be fitted to the implement drawbar.

Part Number: WE4105


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Bare-CO
