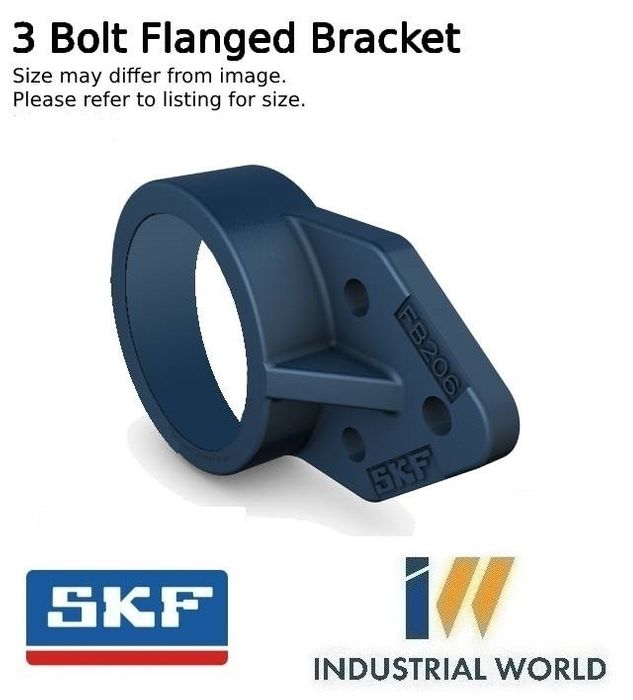

SKF - 3 Bolt Flanged Bracket Housing

(Light Duty) Suit 62 mm Bearing OD

Stock Code:

FB206_SKF

$25.70 incl GST

Stock Locations

Ballarat:

9 In Stock
Shepparton:

Special Order

5 On Order

Make an Enquiry

Add to Favourites

Description

FB206

SKF - 3-Bolt Flanged Bracket Housing (Bearing Sold Separately)

Three-bolt bracket flanged ball bearing unit with set screw locking, cast iron housing, JIS

These three-bolt bracket flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost Effective

Dimensions

Shaft diameter	30 mm
Housing overall width	30 mm
Width, total	40.9 mm
Bearing width, total	38.1 mm

Properties

Housing type	Flanged
Flanged housing type	3-bolt bracket
Number of bolt holes for fasteners	3
Fastening bolt hole type	Plain
Retaining feature, inner ring	Set screws
Bore type	Cylindrical
Rubber seating ring	Without
Material, housing	Cast iron
Material, bearing	Bearing steel
Coating	Without
Sealing, bearing	Seal and flinger on both sides
Sealing type	Contact, standard
Sealing, unit	Optional end cover
Lubricant	Grease
Relubrication hole	With
Grease fitting	With mm
