SKF - 4 Bolt Square Flange Housing (Light Duty)

Suit 125 mm Bearing OD (F214)
Stock Code:
FYJ514_SKF
$178.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

FYJ514

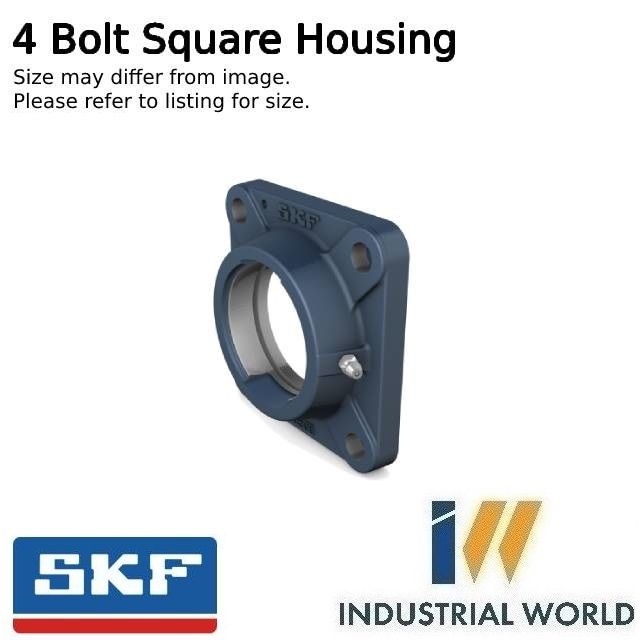

SKF - 4 Bolt Square Flange Housing (Light Duty) FYJ514

Equivalant to: F214 & FYJ514M

Square flanged housing for insert bearings, cast iron, JIS

These square flanged housings for insert bearings are complaint with Japanese Industrial Standards (JIS). They are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads

Dimensions

Centre distance between bolt holes152 mm
Housing overall width50.5 mm
Spherical seating diameter125 mm

Properties

CoatingWithout
Fastening bolt hole typePlain
Flanged housing typeSquare
Grease fittingWith
Housing typeFlanged
Material, housingCast iron
Number of bolt holes for fasteners4
Relubrication holeWith

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    125 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    214
  • Style:
    -
