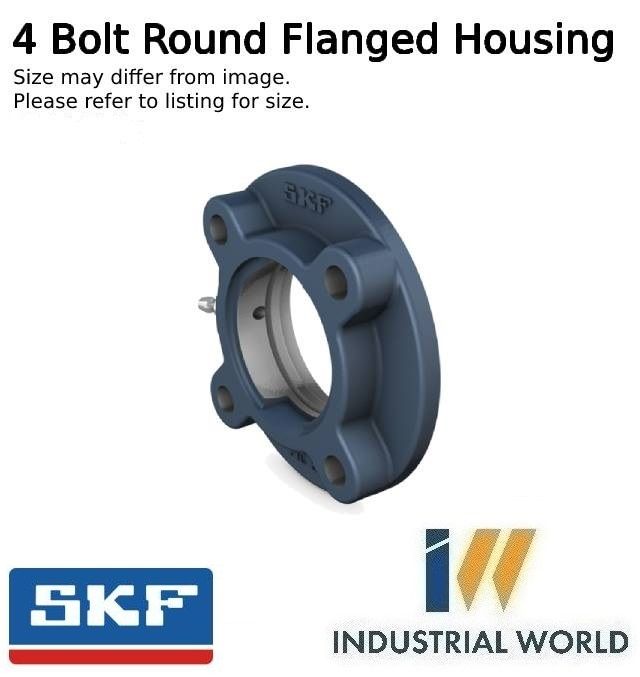

SKF - 4 Bolt Round Flanged Cartridge Housing

(Light Duty) Suit-ECY End Cover-72 mm Bearing OD
Stock Code:
FC207_SKF
$27.10 incl GST

Stock Locations

  • Ballarat:
    81 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FC207 SKF

Round flanged housing for insert bearing, cast iron

These round flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads

Dimensions

Spherical seating diameter72 mm
Housing overall width33.5 mm
Pitch diameter of bolt holes of round and triangle flange type housing110 mm

Properties

Housing typeFlanged
Flanged housing typeRound
Number of bolt holes for fasteners4
Fastening bolt hole typePlain
Material, housingCast iron
CoatingWithout
Relubrication holeWith
Grease fittingWith

Click here for catalogue information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    72 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    207
  • Style:
    Takes End Cover
