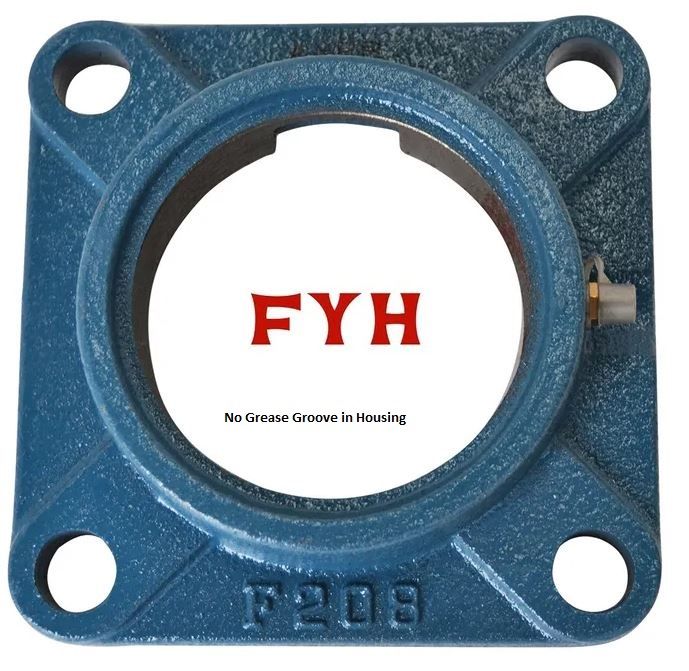

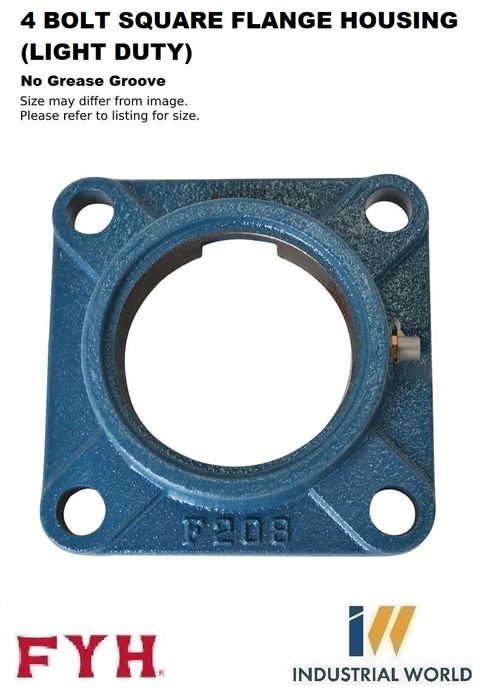

FYH -4 Bolt Square Flange Housing (Light Duty)

Suit 47 mm Bearing OD - No grease groove
Stock Code:
F204_FYH
$16.50 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

F204 FYH

FYH F204 Light Four Bolt Flange Bearing Housing Suits 12 - 20mm (1/2 - 7/8") Shaft

Light Four Bolt Flange Cast Iron Bearing Housing - F200

Wide Inner Ring Housings (Light Four Bolt Flange Bearing Housing)

  • F200 series, light four-bolt flange, and four-bolt hole square cast iron flange housing.
  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.

 Specifications

  • Brand FYH
  • Model Number F204/FYH
  • A1 (mm) 11
  • Shaft Diameter (d)12 - 20mm (1/2 - 7/8")
  • Dynamic Load (cr) kN12.8
  • A2 (mm) 15
  • Factor Fo 13.2
  • A (mm) 25.5
  • Shaft Diameter d (mm) 12
  • N (mm) 12
  • A0 (mm) 33.3
  • l (mm) 86
  • S (mm) 12.7
  • Static Load (c0r) kN6.65
  • J (mm) 64
  • Bolt Size (mm) M10
  • B (mm) 31
  • Type Bearing Housing
  • System of Measurement Metric/Imperial
  • Material Cast Iron
  • Item Type Light Four Bolt Flange



 FYH


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    47 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    204
  • Style:
    No Grease Groove in Housing
