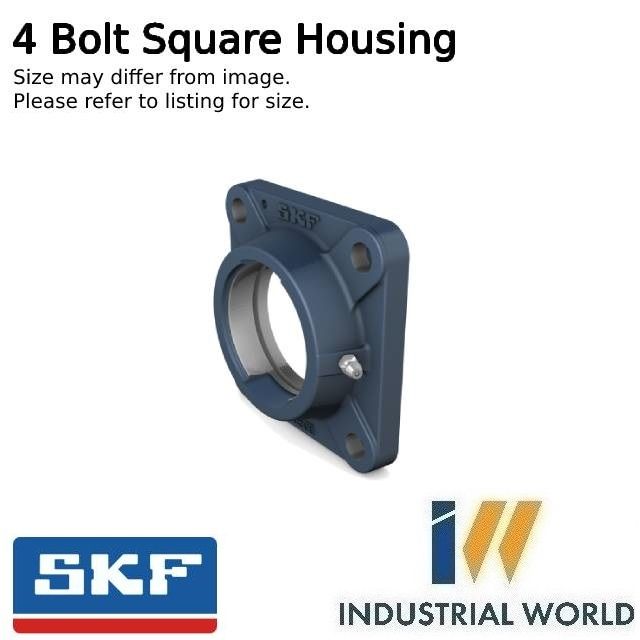

SKF - 4 Bolt Square Flange Housing (Light Duty)

Suit 47 mm Bearing OD - Suit ECY End Cover
Stock Code:
F204_SKF
$12.76 incl GST

Stock Locations

  • Ballarat:
    120 In Stock
  • Shepparton:
    20 In Stock
Make an Enquiry
Add to Favourites

Description

F204 SKF

Square flanged housing for insert bearings, cast iron

These square flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads

Dimensions

Spherical seating diameter47 mm
Housing overall width29.5 mm
Centre distance between bolt holes63.5 mm

Properties

Housing typeFlanged
Flanged housing typeSquare
Number of bolt holes for fasteners4
Fastening bolt hole typePlain
Material, housingCast iron
CoatingWithout
Relubrication holeWith
Grease fittingWith

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    47 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    204
  • Style:
    Takes End Cover
