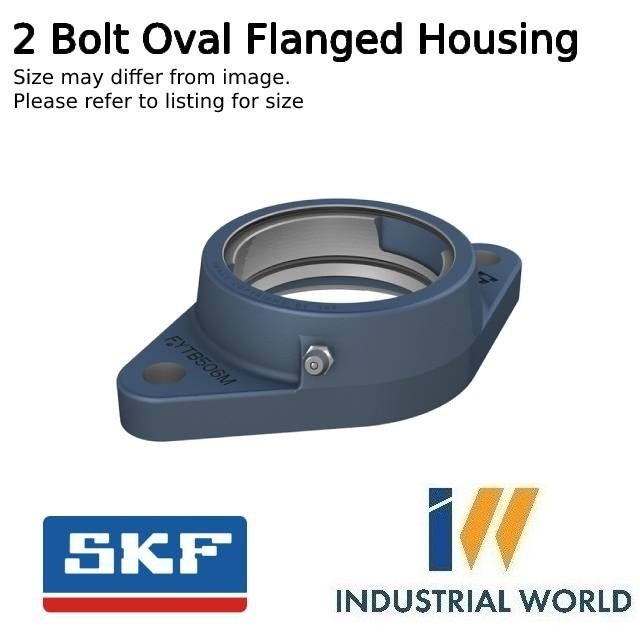

SKF - 2 Bolt Oval Flange Housing

(Light Duty) Suit-ECY End Cover -110 mm Bearing OD
Stock Code:
FL212_SKF
$43.65 incl GST

Stock Locations

  • Ballarat:
    7 In Stock
  • Shepparton:
    2 In Stock
5 On Order

Description

FL212

SKF - 2 Bolt Oval Flange Housing - FL212 (Bearing Sold Separately)

Oval flange ball bearing unit with extended inner ring and set screw locking, cast iron housing, JIS

These oval flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective

Dimensions

Shaft diameter60 mm
Housing overall width45 mm
Width, total68.7 mm
Centre distance between bolt holes202 mm
Bearing width, total65.1 mm

Properties

Housing typeFlanged
Flanged housing typeOval
Number of bolt holes for fasteners2
Fastening bolt hole typePlain
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rubber seating ringWithout
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Sealing, bearingSeal and flinger on both sides
Sealing typeContact, standard
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Performance

Basic dynamic load rating52.7 kN
Basic static load rating36 kN
Limiting speed2 700 r/min
NoteLimiting speed with shaft tolerance h6

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    110 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    212
  • Style:
    Takes End Cover
