SKF - 2 Bolt Pillow Block Housing (Light Duty)

Suit 90 mm Bearing OD - Suit ECY End Cover
Stock Code:
P210_SKF
$34.63 incl GST

Stock Locations

  • Ballarat:
    970 In Stock
  • Shepparton:
    18 In Stock
Make an Enquiry
Add to Favourites

Description

P210

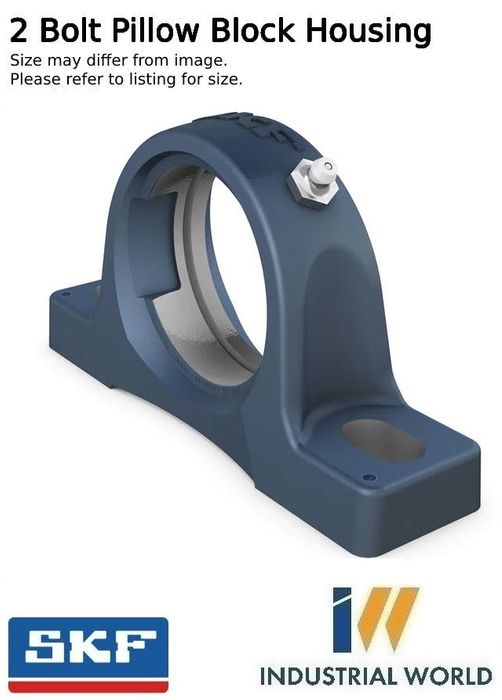

SKF - 2 Bolt Pillow Block Housing (P210)

Pillow block housing for insert bearings, cast iron, ISO standards

Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.

  • Accommodate heavy loads in different directions
  • High degree of stiffness
  • Narrow design
  • Cast Iron
  • Two Bolt Mounting (JIS)
  • One piece solid construction

Dimensions

Spherical seating diameter90 mm
Centre height (pillow block)57.2 mm
Housing overall width58 mm
Centre distance between bolt holes157.5 mm

Properties

Housing typePillow block
Number of bolt holes for fasteners2
Fastening bolt hole typePlain
Material, housingCast iron
CoatingWithout
Relubrication holeWith
Grease fittingWith

Logistics

Product net weight2.1 kg
eClass code23-05-16-02
UNSPSC code31171536

Click here for catalogue information

View product table

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    90 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    210
  • Style:
    Takes End Cover
