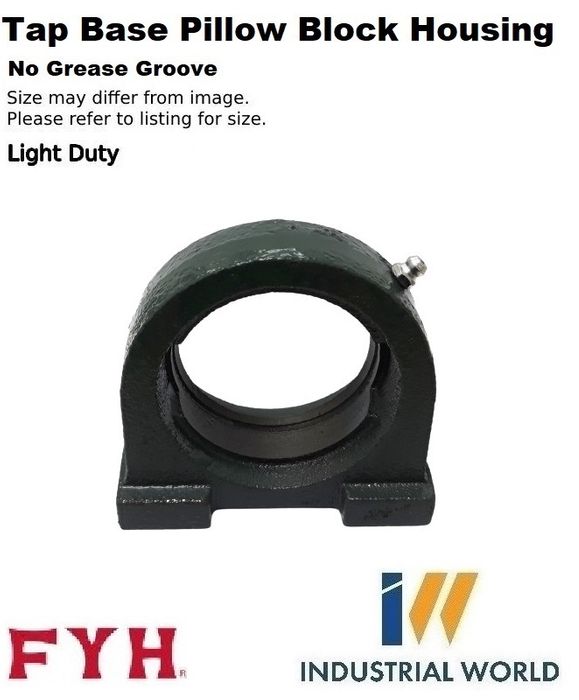

FYH - Tap Base Pillow Bl HGS (No Grease Groove)

Suit 62 mm Bearing OD (Light Duty) M14X2
Stock Code:
PA206_FYH
$27.81 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PA206 FYH

FYH PA206 Light Tapped Base Block Bearing Housing Suits 30mm (1 1/8 - 1 1/4") Shaft

Light Tapped Base Pillow Block Cast Iron Bearing Housing

Wide Inner Ring Housings (Light Tapped Base Pillow Block Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • PA200 series light tapped base pillow block, stub pillow block cast iron housing with two drilled and tapped holes underneath the base of the housing.
  • No Grease Groove
  • Brand FYH
  • Model Number PA206_FYH

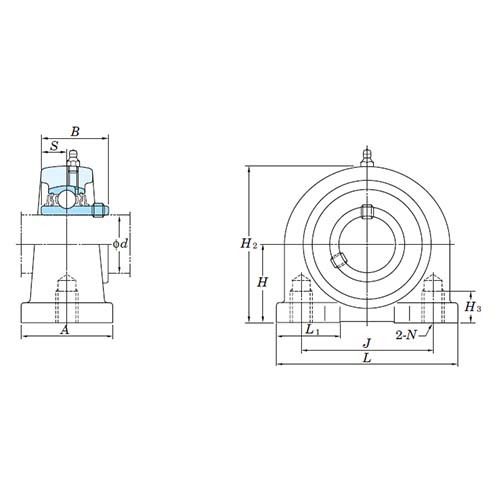

  • L1 (mm) 36
  • Static Load (c0r) kN 11.3
  • J (mm) 66
  • L (mm) 94
  • B (mm) 38.1
  • Shaft Diameter (d)30mm (1 1/8 - 1 1/4")
  • Dynamic Load (cr) kN19.5
  • H3 (mm) 18
  • h2 (mm) 84
  • A (mm) 50
  • Shaft Diameter d (mm) 30
  • N (mm) M14 x 2
  • Factor Fo 13.9
  • H (mm) 42.9
  • S (mm) 15.9
  • Type Bearing Housing
  • System of Measurement Metric/Imperial
  • Material Cast Iron
  • Item Type Light Tapped Base Pillow Block

FYH

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    62 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    206
  • Style:
    No Grease Groove in Housing
