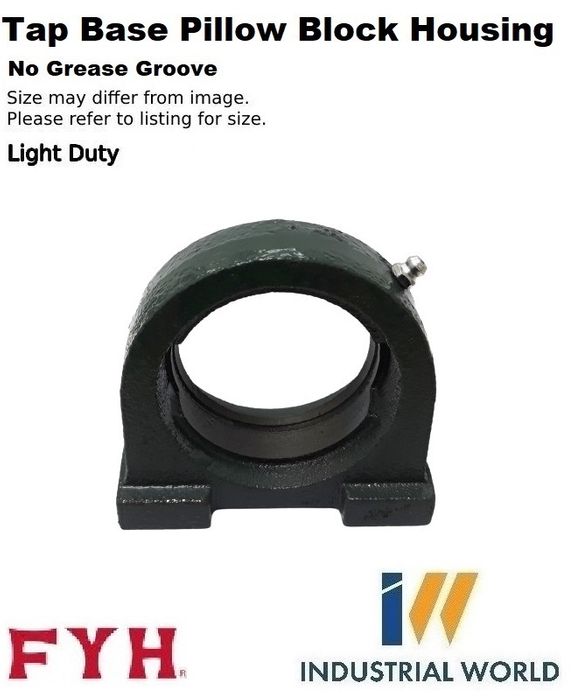

FYH - Tap Base Pillow Bl HGS (No Grease Groove)

Suit 80 mm Bearing OD (Light Duty) M14X2
Stock Code:
PA208_FYH
$38.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PA208 FYH

FYH PA208 Light Tapped Base Block Bearing Housing Suits 40mm (1 1/2 - 1 9/16") Shaft

Light Tapped Base Pillow Block Cast Iron Bearing Housing

Wide Inner Ring Housings (Light Tapped Base Pillow Block Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • PA200 series light tapped base pillow block, stub pillow block cast iron housing with two drilled and tapped holes underneath the base of the housing.
  • No Grease Groove

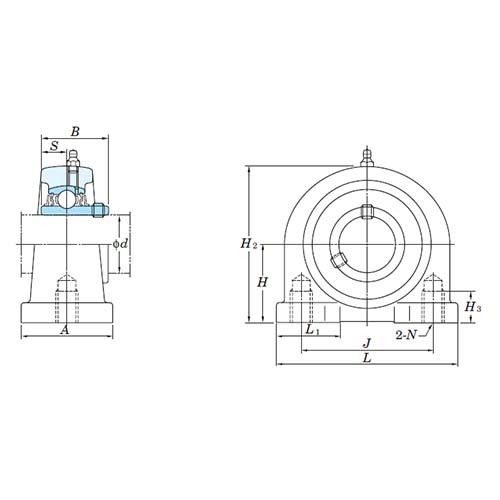

 Specifications
  • Brand FYH
  • Model Number PA208_FYH
  • L1 (mm) 41
  • Static Load (c0r) kN 17.8
  • J (mm) 84
  • L (mm) 116
  • B (mm) 49.2
  • Shaft Diameter (d)40mm (1 1/2 - 1 9/16")
  • Dynamic Load (cr) kN29.1
  • H3 (mm) 20
  • h2 (mm) 100
  • A (mm) 58
  • Shaft Diameter d (mm) 40
  • N (mm) M14 x 2
  • Factor Fo 14
  • H (mm) 49.2
  • S (mm) 19
  • Type Bearing Housing
  • System of MeasurementMetric/Imperial
  • Material Cast Iron
  • Item TypeLight Tapped Base Pillow Block

FYH

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    80 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    208
  • Style:
    No Grease Groove in Housing
