SKF - Composite(Plastic) Pillow Block Housing

(White)Suit 72 mm BRG OD & ECW End Cover (P-P207)
Stock Code:
SYWK507Y_SKF
$70.49 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SYWK507Y

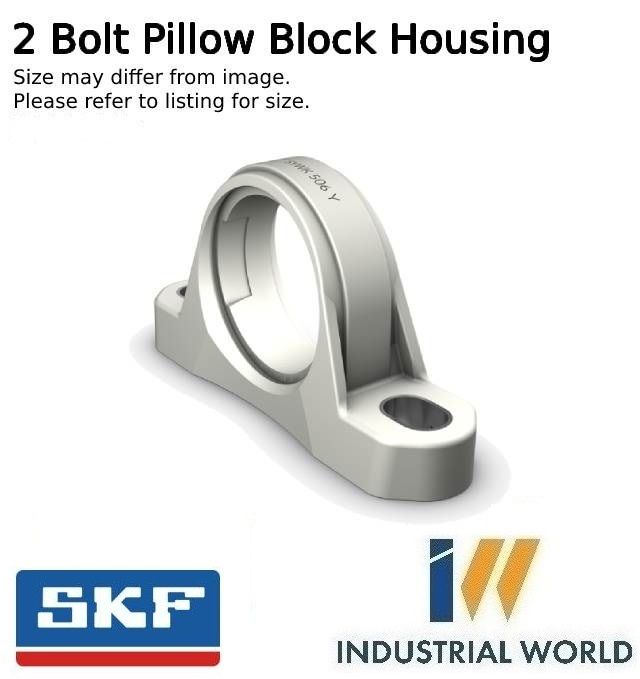

SKF - Composite (Plastic) Pillow Block Housing

(White) Suit 72 mm BRG OD & ECW End Cover (P-P207)

Pillow block housing for insert bearings, composite

Pillow (plummer) block housings are designed to accommodate an insert bearing,. Housings made of composite materials are lightweight but robust and have excellent corrosion resistance. They are suitable for most applications and can be bolted directly to a support surface.
  • Excellent corrosion resistance
  • Tolerant of high and low temperatures
  • Lightweight
  • Recyclable

Dimensions
Centre distance between bolt holes126 mm
Centre height (pillow block)47.6 mm
Housing overall width45 mm
Spherical seating diameter72 mm

Properties

CoatingWithout
Fastening bolt hole typePlain
Grease fittingWithout
Housing typePillow block
Material, housingComposite for the SKF Food Line
Number of bolt holes for fasteners2
Relubrication holeWithout

Click here for product information

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    72 mm
  • Material:
    Plastic
  • Brand:
    SKF
  • Size:
    207
  • Style:
    Takes End Cover
