NKE - 4 Bolt Round Flanged Housing

Suit 85 mm Bearing OD
Stock Code:
ME09_NKE
$271.35 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

NKE - 4 Bolt Round Flanged Housing

PME45 45mm INA 4 Bolt Round Flanged Bearing

Suit 85 mm Bearing OD

Alternative Part Number PME45-XL; PME45XL; PME45

Bearing Insert GRAE45NPPB
Bolt Hole Centre (J) 130mm
Bore Size (d) 45mm
Brand INA
Height (B) 43.8mm
Outside Dia (H) 155mm
RHP Equivalent FC45EC
Reference PME45


Normal duty four bolt round flanged bearing unit complete with eccentric locking collar bearing insert with P seals. The cast iron housing includes a grease nipple for re-lubrication.

It has a centring spigot which gives concentric alignment of the housings and relieves the fixing screws of any radial forces.

The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.

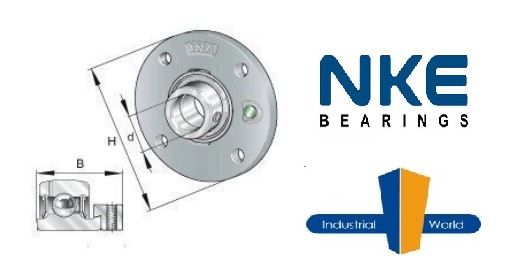

Sizes (see below diagram):

d 45 mm
H 55 mm
B 43,8 mm
A 25 mm
A1 12 mm
A2 2 mm
d3 max 63 mm
J 130 mm
N 14 mm
Q M6
S 2 mm
U 30,7 mm
Z 105 mm Tolerance: h8
m 1,93 kg Mass
Cr 34500 N Basic dynamic load rating, radial
C0r 20400 N Basic static load rating, radial
ME09 Designation of housing
GRAE45-XL-NPP-B Designation of bearing

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    85 mm
  • Material:
    Cast Iron
  • Size:
    209
  • Style:
    Takes End Cover
