SKF - 2 Bolt Pillow Block Housing (P210)

Suit 90 mm Bearing OD (ECY End Cap)
Stock Code:
SY510M_SKF
$80.12 incl GST

Stock Locations

  • Ballarat:
    22 In Stock
  • Shepparton:
    2 In Stock
Make an Enquiry
Add to Favourites

Description

SY510M

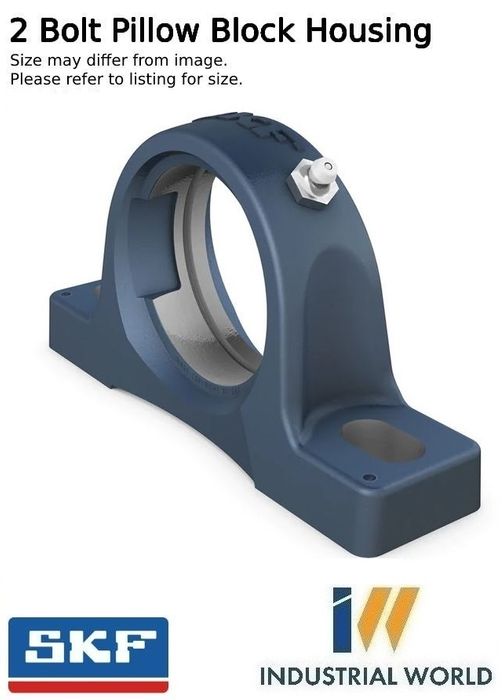

SKF - 2 Bolt Pillow Block Housing (P210)

Pillow block housing for insert bearings, cast iron, ISO standards

Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.

  • Accommodate heavy loads in different directions
  • High degree of stiffness
  • Narrow design

Dimensions

Centre distance between bolt holes157 mm
Centre height (pillow block)57.2 mm
Housing overall width54 mm
Spherical seating diameter90 mm

Properties

CoatingWithout
Fastening bolt hole typePlain
Grease fittingWith
Housing typePillow block
Material, housingCast iron
Number of bolt holes for fasteners2
Relubrication holeWith

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    90 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Size:
    210
  • Style:
    Takes End Cover
