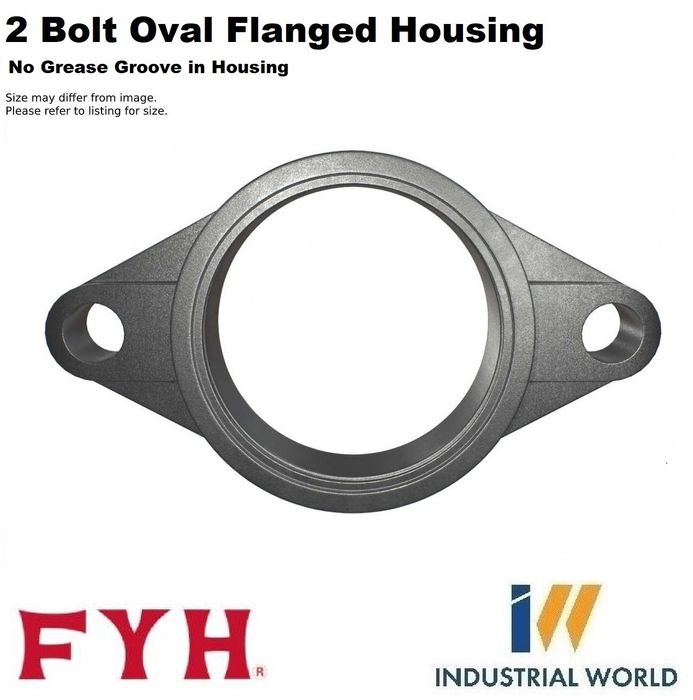

FYH - 2 Bolt Oval Flanged Housing (Small)

Suit 47 mm Bearing OD (Light Duty) No Grease Groov
Stock Code:
LF204_FYH
$12.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LF204 FYH

FYH LF204 Extra Light 2-Bolt Flange Bearing Housing Suits 20mm (3/4") Shaft

Extra Light Two Bolt Flange Cast Iron Bearing Housing

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • No grease groove.

Specifications

  • Brand FYH
  • Model Number LF204_FYH
  • Dynamic Load (cr) kN12.8
  • A2 (mm) 11
  • Factor Fo 13.2
  • B (mm) 25
  • A1 (mm) 11
  • A01 (mm) 33.5
  • Shaft Diameter d (mm) 20
  • N (mm) 10
  • A0 (mm) 29
  • L (mm) 60
  • A (mm) 20
  • Shaft Diameter (d)20mm (3/4")
  • Static Load (c0r) kN6.65
  • J (mm) 71.5
  • Bolt Size (mm) M8
  • H (mm) 90
  • S (mm) 7B1 (mm) 29.5

FYH


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    47 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    204
  • Style:
    No Grease Groove in Housing
