FYH - 2 Bolt Oval Flanged Housing (Small)

Suit 40 mm Bearing OD (Light Duty) No Grease Groov
Stock Code:
LF203_FYH
$11.75 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LF203_FYH

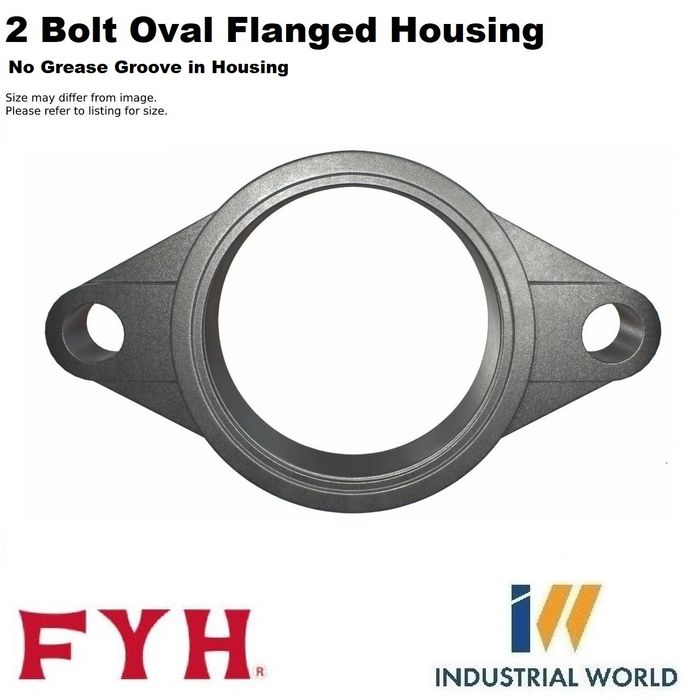

FYH LF203 Extra Light 2-Bolt Flange Bearing Housing Suits 12-17mm (1/2 - 5/8") Shaft

Wide Inner Ring Housings (Extra Light Two Bolt Flange Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • No grease groove

Specifications

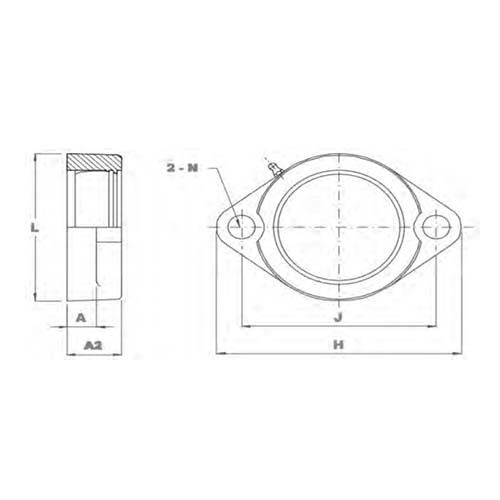

  • Model Number LF203/FYH
  • Dynamic Load (cr) kN9.55
  • A2 (mm) 9.5
  • Factor Fo 13.2
  • B (mm) 22
  • A1 (mm) 9.5
  • A01 (mm) 32
  • Shaft Diameter d (mm) 17
  • N (mm) 8
  • A0 (mm) 25.5
  • L (mm) 52
  • A (mm) 18
  • Shaft Diameter (d)12-17mm (1/2 - 5/8")
  • Static Load (c0r) kN4.8
  • J (mm) 63.5
  • Bolt Size (mm) M6
  • H (mm) 81
  • S (mm) 6
  • B1 (mm) 28.5
  • TypeBearing Housing
  • System of MeasurementMetric/Imperial
  • MaterialCast Iron
  • Item TypeExtra Light Two Bolt Flange

FYH


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    203
  • Style:
    No Grease Groove in Housing
