FYH - 2 Bolt Oval Flanged Housing (Small)

Suit 52 mm Bearing OD (Light Duty) No Grease Groov
Stock Code:
LF205_FYH
$14.61 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

LF205 FYH

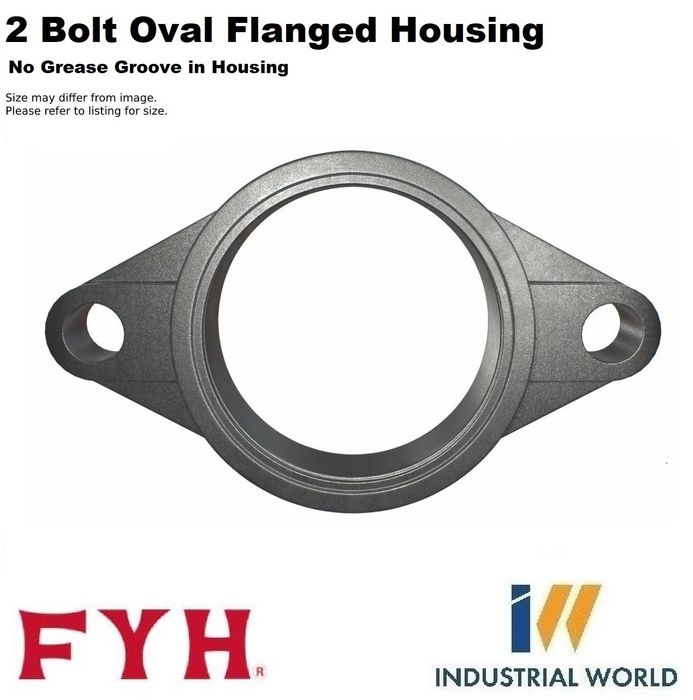

FYH LF205 Extra Light 2-Bolt Flange Bearing Housing Suits 25mm (7/8 - 1") Shaft

Extra Light Two Bolt Flange Cast Iron Bearing Housing

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • No grease groove.

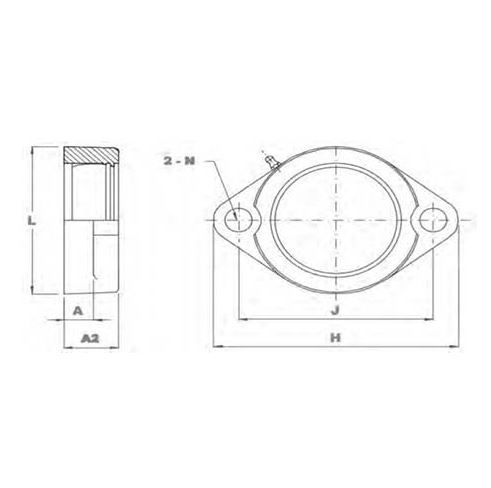

Specifications

  • Brand FYH
  • Model Number LF205_FYH
  • Dynamic Load (cr) kN14
  • A2 (mm) 11
  • Factor Fo 13.9
  • B (mm) 27
  • A1 (mm) 11
  • A01 (mm) 34
  • Shaft Diameter d (mm) 25
  • N (mm) 10
  • A0 (mm) 30.5
  • L (mm) 64
  • A (mm) 20
  • Shaft Diameter (d)25mm (7/8 - 1")
  • Static Load (c0r) kN7.85
  • J (mm) 76
  • Bolt Size (mm) M8
  • H (mm) 95
  • S (mm) 7.5
  • B1 (mm) 30.5
  • Type Bearing Housing
  • System of Measurement Metric/Imperial
  • MaterialCast Iron
  • Item Type Extra Light Two Bolt Flange

FYH


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    52 mm
  • Material:
    Cast Iron
  • Brand:
    FYH
  • Size:
    205
  • Style:
    No Grease Groove in Housing
